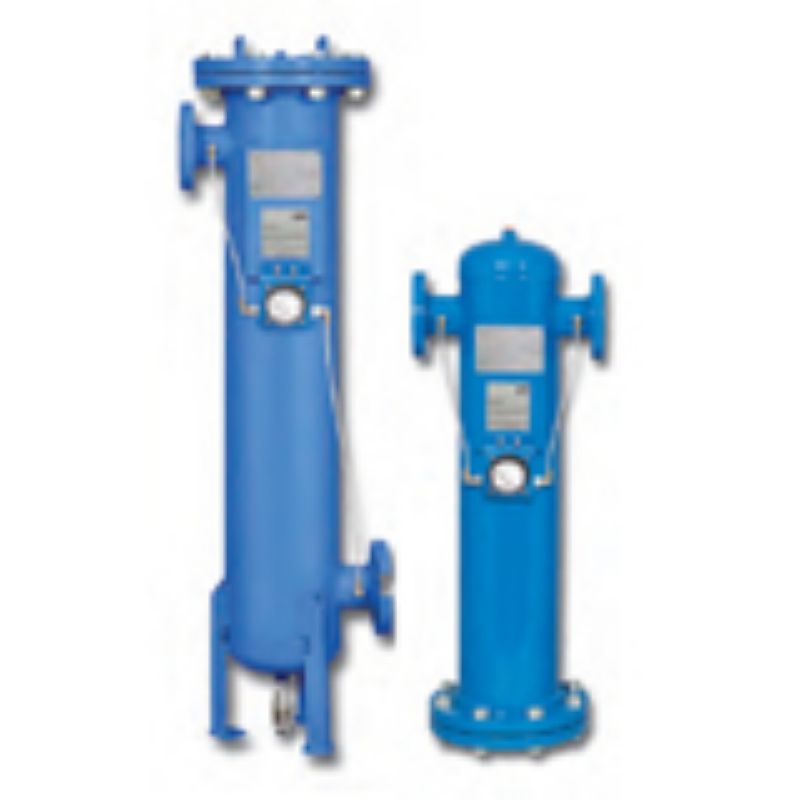

Parker AFF4-0125-HFC - Higher Flow Rate ASME Code Compressed Air Filters 3IN to 10IN Line Size

Parker Balston higher flow rate ASME code stamped compressed air filters offer high efficiency coalescing filtration at very high flow rates.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AFF4-0125-HFC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	15.2 barg	Port Size	4 inch
Filter Efficiency Rating	99.50 %	Maximum Flow Rate	3320 CFM
Materials of Construction	Body: Carbon Steel, Paint: Epoxy Enamel (Gray), Internals: Epoxy powder painted carbon steel, Seals: Single element vessel-Inorganic flange gasket/ Multi element vessel-Fluorocarbon o-ring, Internal Coating: Epoxy enamel	Weight	370 lb
Micron Rating	0.5 MICRON	Port Type	Flange
Brand	Balston	Mounting Position	Floor Mount
Height	63.3 inch	Drain Port Size	1/2 inch
Width	20 inch	Maximum Operating Temperature	225 °F
Division	Industrial Gas Filtration and Generation Division	Compatible Element	850-25-HFC
Filter Type	Coalescing	Port Connection (inch)	4
Port Connection Type	Flange	Maximum Flow Rate (cfm)	3320
Mounting Position	Floor Mount	Filtration Efficiency	99.50%
