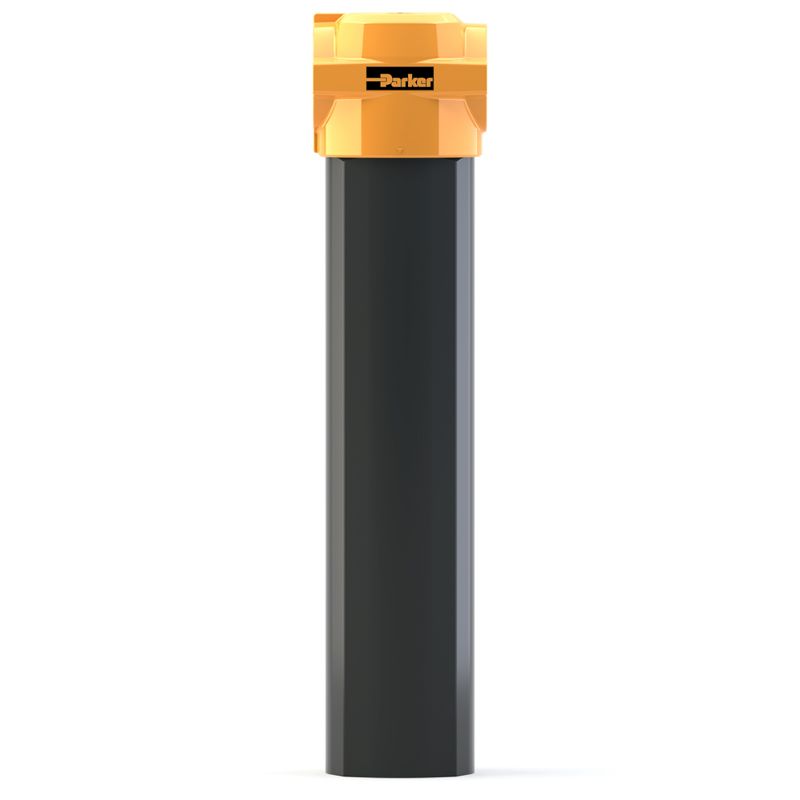

Parker AAPX055JNMX - OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g)

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AAPX055JNMX

$2,449.10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Element Change Interval	12 Months
Product Type	Compressed Air Filter	Specifications Met	Fully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.
Application	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Drain	Manual
Product Series	OIL-X Grade AA	Operating Pressure	1 to 20 barg
Residual Oil Content	Not Applicable	Materials of Construction	Die Cast Aluminium
Filter Efficiency Rating	99.9999 %	Depth	7.2 inch
Width	7.56 inch	Height	844.0 mm
Weight	15.78 kg	Compatible Element	P055AA
Operating Temperature	35 to 176 °F	Pressure Differential	54.0
Micron Rating	Down to 0.01 micron	Connection Type	NPT
Filter Type	Dry Particulate	Port Size	3 inch
Maximum Flow Rate	2232 m³/h @ 7 barg (1314 cfm @ 102 psig)
