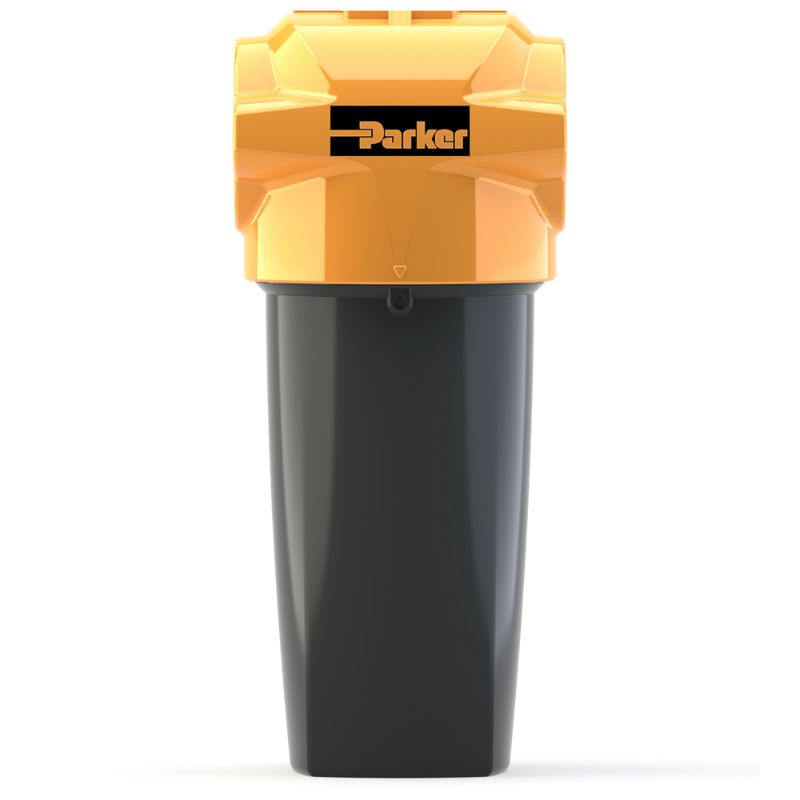

Parker AAPX030GNFX - OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g)

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AAPX030GNFX

$905.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Gas Separation and Filtration Division EMEA
Operating Temperature	2 to 80 °C	Application	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Product Type	Compressed Air Filter	Specifications Met	Fully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.
Pressure Differential	104.0	Operating Pressure	22 to 232 psig
Compatible Element	P030AA	Weight	6.63 lb
Residual Oil Content	0.01 mg/m³ / 0.01 ppm(w) <br/>@ 21°C (70°F)	Element Change Interval	12 Months
Width	120.0 mm	Brand	Parker
Materials of Construction	Die Cast Aluminium	Product Series	OIL-X Grade AA
Filter Efficiency Rating	99.9999 %	Drain	Automatic Float
Division	Gas Separation and Filtration Division EMEA	Technology	Filtration
Depth	4.53 inch	Height	14.45 inch
Port Size	1 inch	Micron Rating	Down to 0.01 micron
Connection Type	NPT	Filter Type	High Efficiency Coalescing
Maximum Flow Rate	396 m³/h @ 7 barg (233 cfm @ 102 psig)
