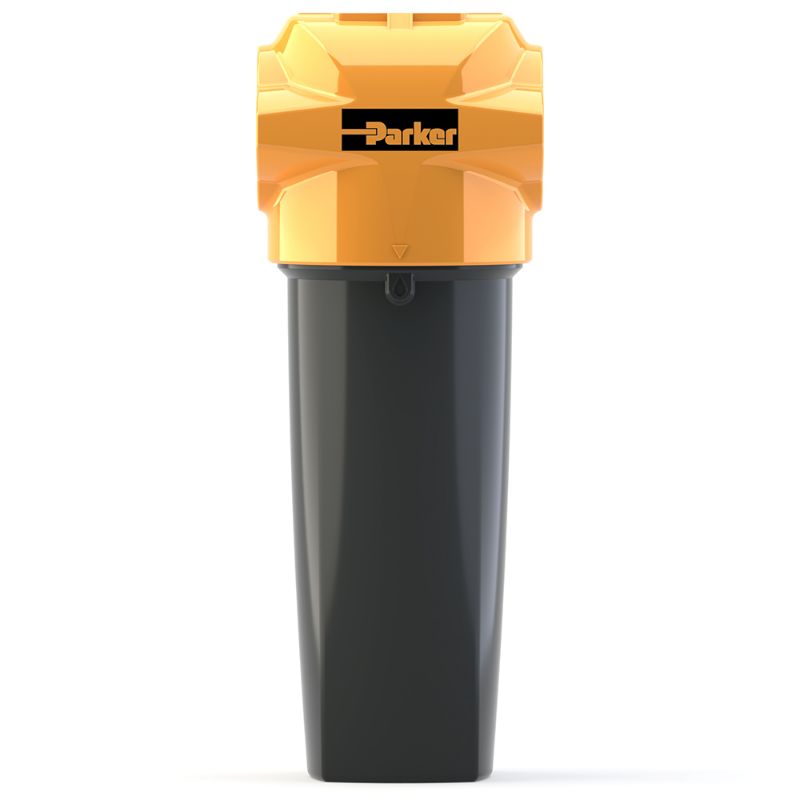

Parker AAPX025DNFX - OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g)

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AAPX025DNFX

$602.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Temperature	35 to 149 °F
Division	Gas Separation and Filtration Division EMEA	Product Type	Compressed Air Filter
Application	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Operating Pressure	1.5 to 16 barg
Specifications Met	Fully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.	Pressure Differential	86.0
Residual Oil Content	0.01 mg/m³ / 0.01 ppm(w) <br/>@ 21°C (70°F)	Brand	Parker
Weight	5.86 lb	Compatible Element	P025AA
Element Change Interval	12 Months	Filter Efficiency Rating	99.9999 %
Drain	Automatic Float	Materials of Construction	Die Cast Aluminium
Width	4.72 inch	Product Series	OIL-X Grade AA
Division	Gas Separation and Filtration Division EMEA	Depth	115.0 mm
Technology	Filtration	Height	10.91 inch
Micron Rating	Down to 0.01 micron	Connection Type	NPT
Filter Type	High Efficiency Coalescing	Port Size	¾ inch
Maximum Flow Rate	216 m³/h @ 7 barg (127 cfm @ 102 psig)
