*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

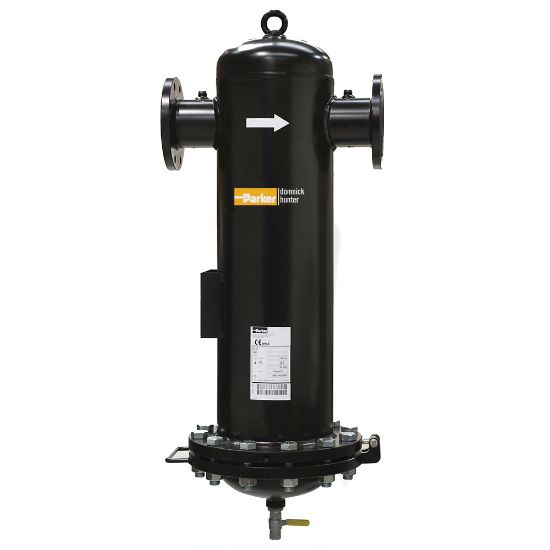

Parker AA080PDEX - OIL-X Carbon Steel Fabricated Compressed Air Filter (For Pressures Up To 16 bar g)

High efficiency compressed air filters for applications requiring large flow rates up to 31248 m³/hr @ 7 bar g with a maximum operating pressure of 16 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AA080PDEX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Gas Separation and Filtration Division EMEA
Maximum Operating Temperature	140 °F	Minimum Operating Temperature	2 °C
Width	650 mm	Maximum Operating Pressure	16 barg
Connection Type	DIN Flange	Depth	22.8 inch
Height	1332 mm	Weight	412 lb
Maximum Flow Rate	5251 CFM at 100 psig	Minimum Operating Pressure	15 psig
Port Connection	DN150 psig	Micron Rating	Down to 0.01 micron
Options	None	Filter Type	High Efficiency Coalescing
Drain	Electronic	Maximum Flow Rate	8928 m³/h @ 7 barg
Maximum Flow Rate (cfm)	5251 cfm @ 100 psig
