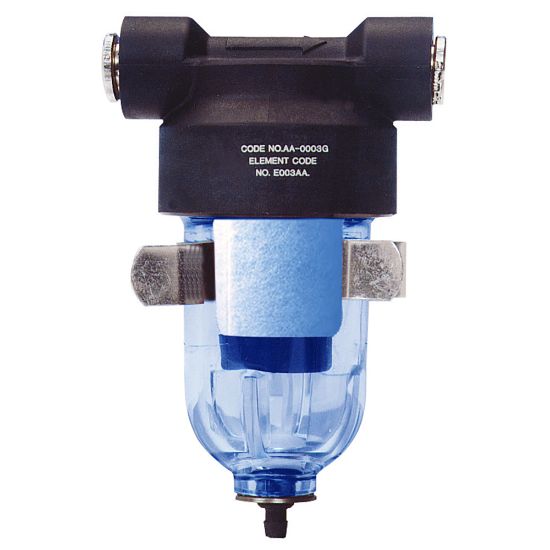

Parker AA-0003G - OIL-Xplus 0003G Low Flow Compressed Air Filter (For pressures up to 10.5 bar g)

High efficiency compressed air filters for applications requiring very low flow rates, up to 11 m³/hr @ 7 bar g, with a maximum operating pressure of 10.5 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AA-0003G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	domnick hunter	Division	Gas Separation and Filtration Division EMEA
Element Change Interval	12 Months	Minimum Operating Temperature	35 °F
Weight	0.1 kg	Maximum Flow Rate	11
Maximum Operating Temperature	122 °F	Maximum Operating Pressure	145 psig
Connection Type	8mm - G¼ Push Fit	Width	58 mm
Height	89 mm	Residual Oil Content	0.01 mg/m³ (0.01 ppm) @ 21°C (70°F)
Compatible Element	K003AA	Filter Type	Coalescing
Micron Rating	0.01 micron
