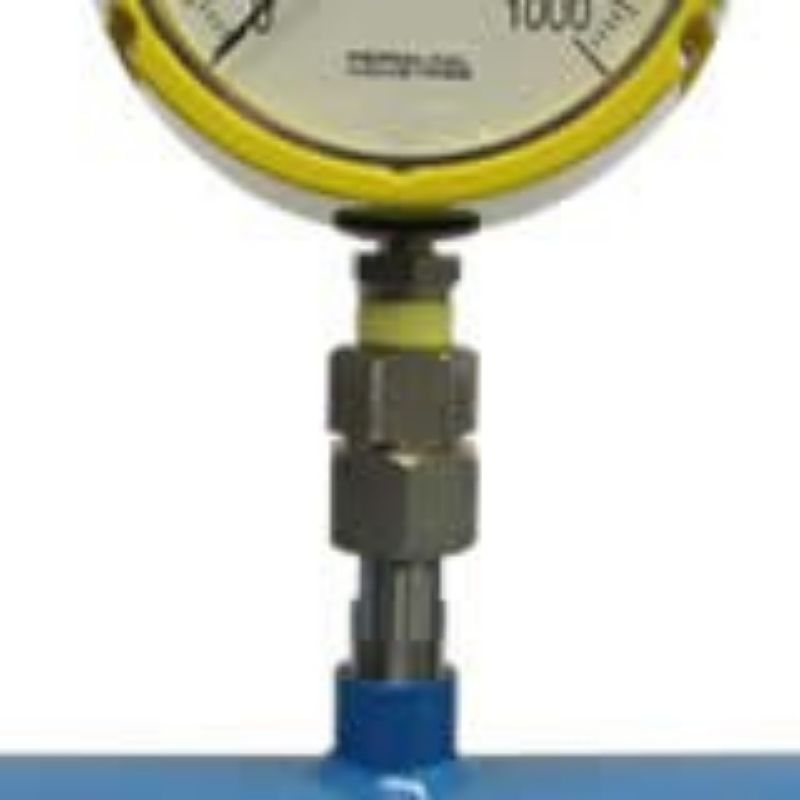

Parker A7-524-C0 - Gauge Siphon and Swivels

Parker PGI’s Gauge Siphons provide a thermal barrier to protect your instruments from harmful vapors with a compact sturdy design that also reduces vibrations. The optional safety excess flow check/snubber eliminates damage due to pressure surges.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A7-524-C0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	316 Stainless Steel	Minimum Operating Pressure	1,500 psi
Maximum Operating Pressure	6,000 psi	Safety Excess Flow Check Included	N/A
Maximum Operating Temperature	200 °F	Inlet Port Size	1/2" MNPT inch
Weight	0.68 kg	Division	Instrumentation Products Division
Outlet Port Size	1/2" FNPT with Carbon Steel Coupling	Minimum Operating Temperature	500° °F
Port Connection Inlet	1/2" MNPT	Safety Excess Flow Check	N/A
Port Connection Outlet	1/2" FNPT with Carbon Steel Coupling

Product resources

Literature and Reference Materials

Gauge Siphons - PGI-GS (PDF)
