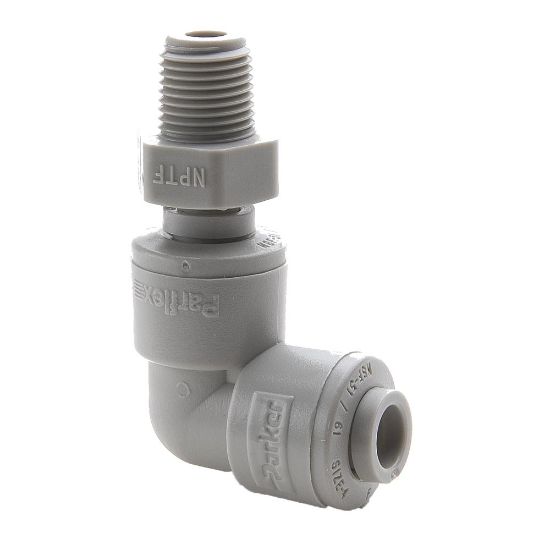

Parker A6MES4-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

AFP Availability:	Quote Required
Partner Available:	109 In Stock

Brand Parker

Part No. A6MES4-MG

$4.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	NSF/ANSI/CAN 61
Seal Material	EPDM (O-Ring)	Maximum Operating Pressure	20 bar
Dimensional Weight	0.0291 lb	Division	Fluid System Connectors Division
Maximum Operating Temperature	180 °F	Body Material	Acetal
Minimum Operating Temperature	-29 °C	Color	Gray
Connection 1 Size	3/8"	Connection 2 Type	Male NPT
Connection 1 Type	Push-to-Connect	Body Material	Acetal
Configuration	Tube to Pipe	Shape	Elbow 90° - Swivel
Connection 2 Size	1/4"
