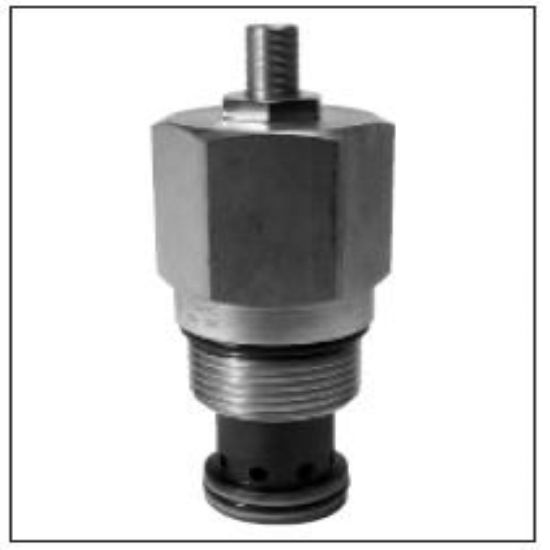

Parker A06P2PWN - Pilot Operated Relief Valve with Free Reverse Check

REGIONAL - Parker’s pilot operated relief valves with reverse flow check are designed for continuous duty applications for working with pressures up to 420 bar (6000 psi) and flows up to 350 lpm (92 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A06P2PWN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Cartridge Systems Division
Leak Rate	5	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-34 °C	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Adjustment Mechanism	Knob	Maximum Tank Pressure	420 bar
Operating Temperature	-34 to 121 °C	Maximum Inlet Pressure Rating	6000 psi
Function	Pilot Operated	Pressure Control Range	145 to 6000 psi
Maximum Pressure Setting	420 bar	Standard Setting Pressure	2900 psi
Weight	1.26 lb	Flow Rate	106 Gal/min
Cavity Size	C16-2	Maximum Flow Rate	400 L/min
Installation Torque	100 Nm	Pressure Control Sensitivity	53
Adjustment Mechanism	Tamper Resistant	Flow Rate	106 GAL/MIN, 400 L/MIN
Seal Material	Knob
