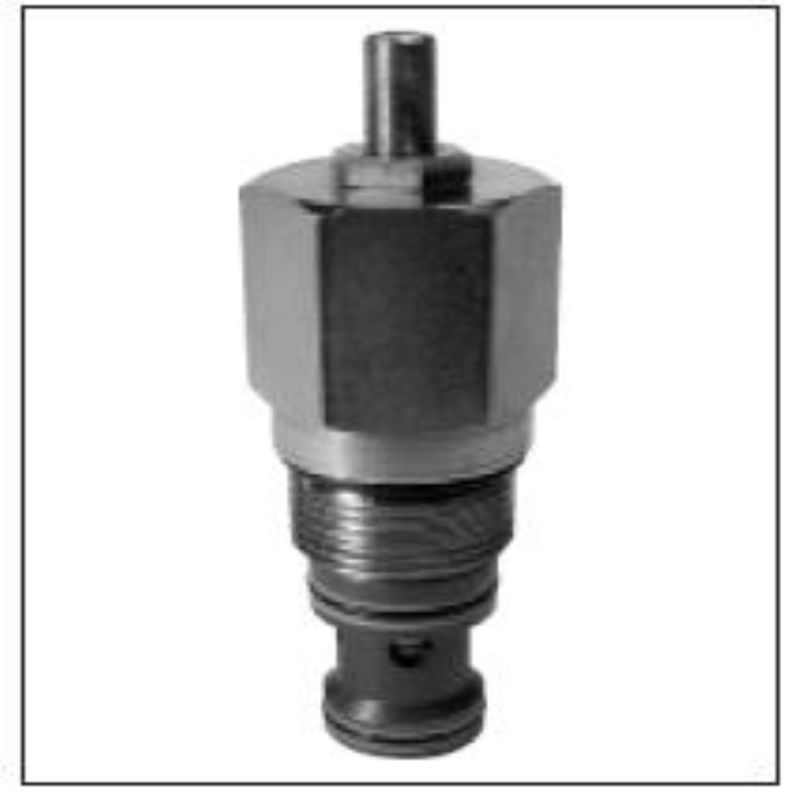

Parker A06H3HZN - Pilot Operated Ventable Relief Valves

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A06H3HZN

$414.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Pressure Sensing
Seal Material	Nitrile	Weight	1.28 lb
Adjustment Mechanism	Screw	Maximum Operating Pressure	6000 psi
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Pressure Setting	3000 psi
Valve Material	Hardened Steel (all operating parts)	Maximum Inlet Pressure Rating	420 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Tank Pressure	420 bar
Function	Pilot Operated	Division	Hydraulic Cartridge Systems Division
Pressure Control Sensitivity	435 psi Per Turn	Configuration	Ventable Pressure Relief
Pressure Control Range	145 to 3000 psi	Cavity Size	C16-3S
For Fluid Type	Synthetic Hydraulic Fluids	Maximum Operating Temperature	121 °C
Standard Setting Pressure	1450 psi	Leak Rate	100 cm3/min @ 1450 Psi (100 bar)
Mounting Type	Screw-in Cartridge	Maximum Flow Rate	400 L/min
Minimum Operating Temperature	-30 °F	Operation Type	Automatic
Division	Mobile Hydraulic Systems Division Europe	Body Material	n/a
Operating Temperature	-34 to 121 °C	Flow Rate	106 Gal/min
Reseat Pressure	n/a	Installation Torque	74 lb-ft
Seal Material	Nitrile	Adjustment Mechanism	Screw
Pressure Control Range	145-3000 PSI, 10-210 BAR	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	106 GAL/MIN, 400 L/MIN
