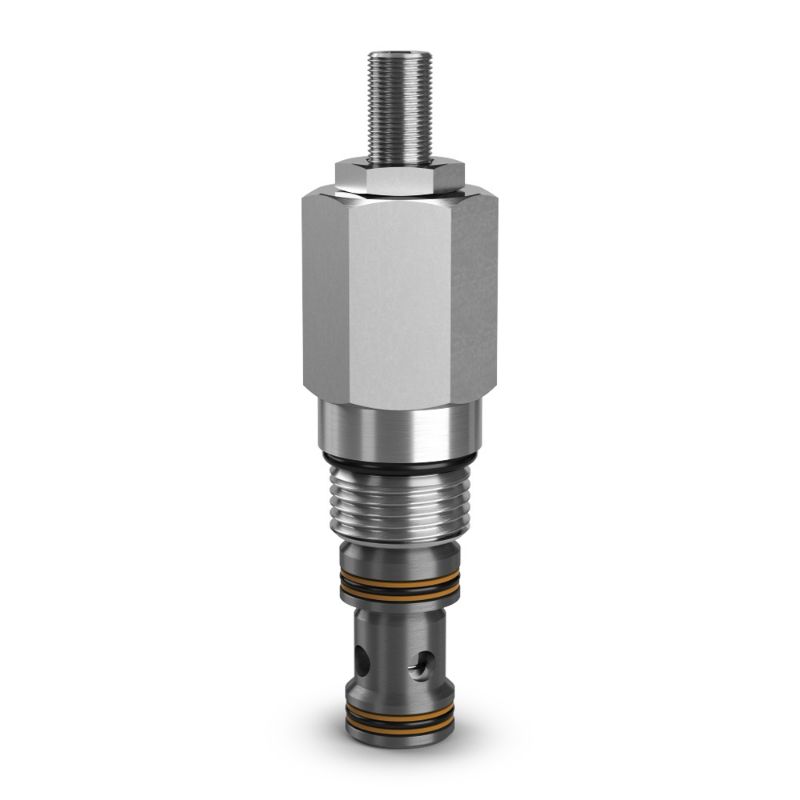

Parker A06H3HTV - Pilot Operated Ventable Relief Valves

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A06H3HTV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Operating Temperature	-15 to 400	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Cavity Size	C16-3S	Maximum Operating Pressure	6000
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Reseat Pressure	n/a
Adjustment Mechanism	Tamper Resistant	Maximum Tank Pressure	6000
Pressure Control Range	145 to 3000	Pressure Control Sensitivity	435 psi Per Turn
Maximum Inlet Pressure Rating	6000	Function	Pilot Operated
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Configuration	Ventable Pressure Relief
Standard Setting Pressure	1450	Weight	1.28
Flow Rate	106	Maximum Flow Rate	106
Installation Torque	74	Seal Material	Fluorocarbon
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	106 GAL/MIN, 400 L/MIN
