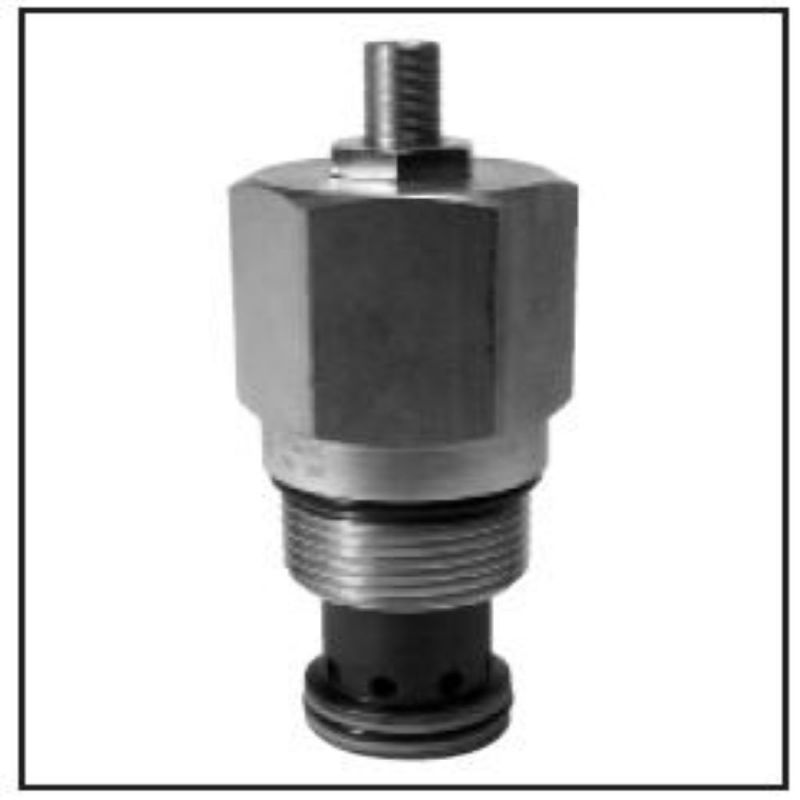

Parker A06G2HTN - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A06G2HTN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	210 bar	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Reseat Pressure	n/a	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	6000 psi	Operating Temperature	-30 to 250 °F
Pressure Control Range	145 to 3000 psi	Pressure Control Sensitivity	30 bar Per Turn
Maximum Inlet Pressure Rating	6000 psi	Function	Pilot Operated
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Standard Setting Pressure	1450 psi
Weight	0.57 kg	Flow Rate	400 L/min
Cavity Size	C16-2	Maximum Flow Rate	400 L/min
Installation Torque	100 Nm	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	106 GAL/MIN, 400 L/MIN
