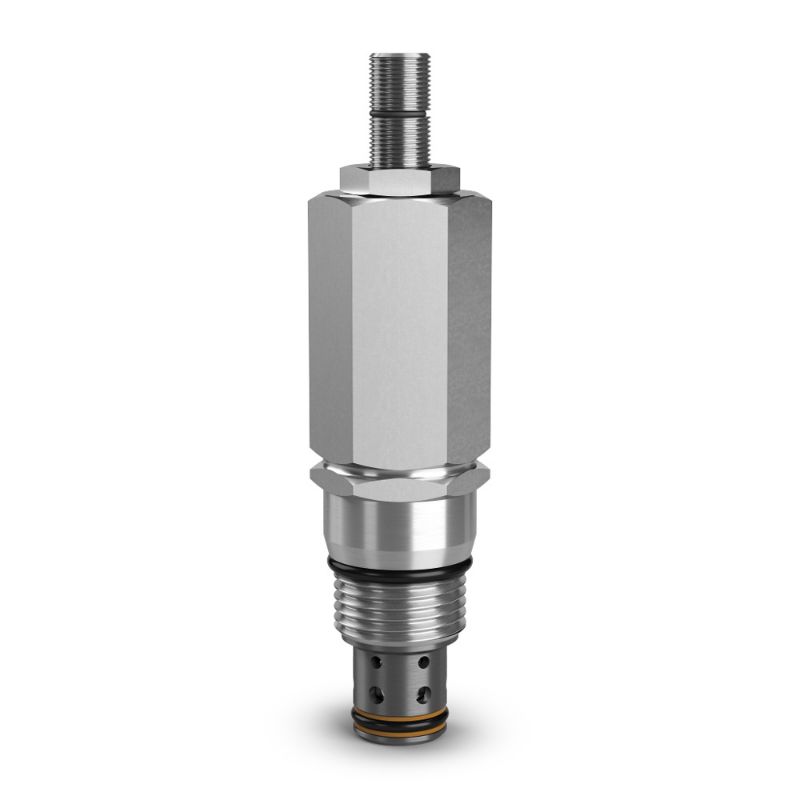

Parker A04J2HTN - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A04J2HTN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Maximum Operating Pressure	5000
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	250	Weight	0.64
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Reseat Pressure	n/a
Adjustment Mechanism	Tamper Resistant	Operating Temperature	-30 to 250
Function	Bi-directional	Flow Rate	32
Leak Rate	10 drops/min @ 1450 Psi (100 bar)	Cavity Size	C10-2
Configuration	Dual Cross-over Relief	Maximum Flow Rate	32
Installation Torque	37	Maximum Tank Pressure	5000
Pressure Control Range	72 to 3000	Standard Setting Pressure	1450
Pressure Control Sensitivity	362 psi Per Turn	Maximum Inlet Pressure Rating	5000
Port Thread Size	n/a	Cracking Pressure	n/a
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Flow Rate	32 GAL/MIN, 120 L/MIN	Pressure Control Range	72-3000 PSI, 5-210 BAR
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Standard Setting Pressure	1450 PSI, 100 BAR
