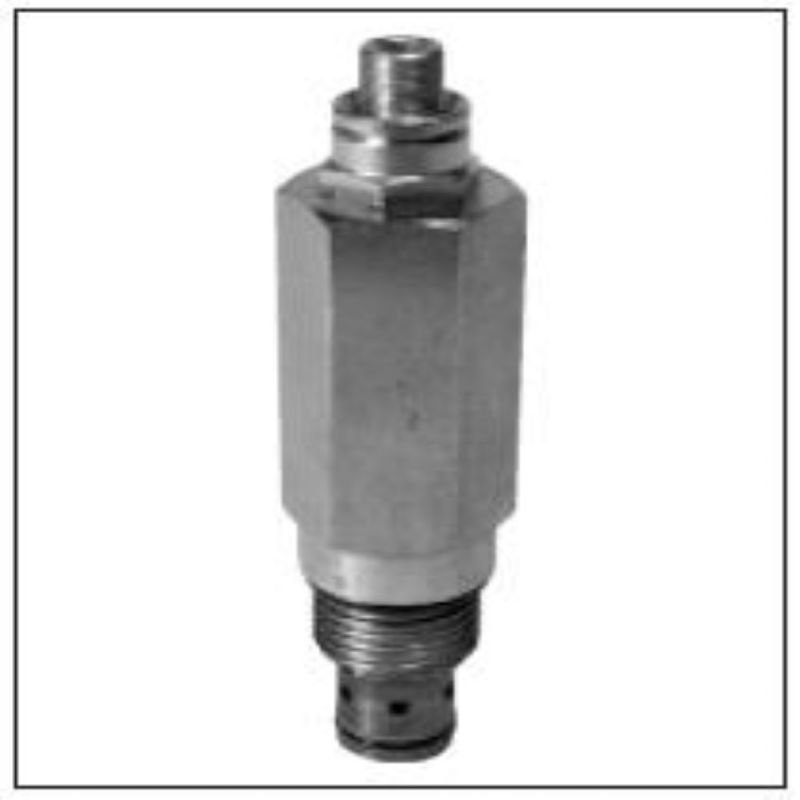

Parker A04B2HZV - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A04B2HZV

$143.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Pressure Sensing
Weight	0.28 kg	Maximum Operating Pressure	6000 psi
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Maximum Pressure Setting	210 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	SAE Class 4	Maximum Inlet Pressure Rating	6000 psi
Valve Material	Steel (all parts)	Maximum Tank Pressure	420 bar
Configuration	Pressure Relief	Pressure Control Sensitivity	21 bar Per Turn
Function	Direct Acting	Cavity Size	C10-2
Maximum Operating Temperature	400 °F	Pressure Control Range	72 to 3000 psi
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Flow Rate	26 Gal/min
Leak Rate	0.33 cm3/min @ 1450 Psi (100 bar)	Operation Type	Automatic
Body Material	n/a	Standard Setting Pressure	100 bar
Mounting Type	Screw-in Cartridge	Installation Torque	37 lb-ft
Minimum Operating Temperature	-26 °C	Division	Mobile Hydraulic Systems Division Europe
Operating Temperature	-15 to 400 °F	Flow Rate	100 L/min
Wire Mesh Screen Included	n/a	Reseat Pressure	n/a
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	28 GAL/MIN, 100 L/MIN
Pressure Control Range	72-3000 PSI, 5-210 BAR
