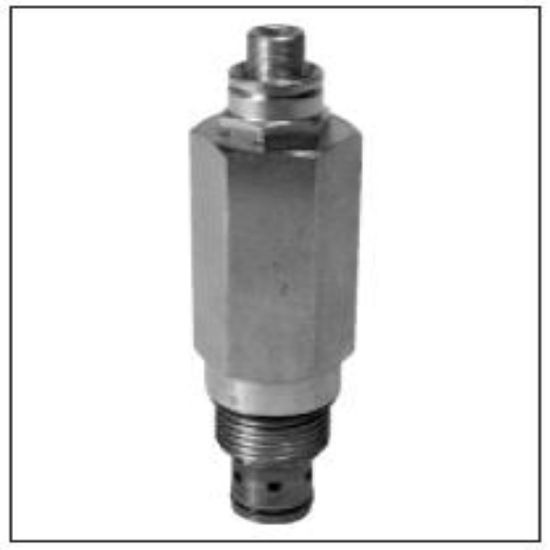

Parker A04B2HWV - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A04B2HWV

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	400
Seal Material	Fluorocarbon	Body Material	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel (all parts)
Operating Temperature	-15 to 400	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	6000	Weight	0.62
Function	Direct Acting	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	5 drops/min @ 1450 Psi (100 bar)	Operation Type	Automatic
Reseat Pressure	n/a	Adjustment Mechanism	Knob
Maximum Tank Pressure	6000	Wire Mesh Screen Included	n/a
Maximum Inlet Pressure Rating	6000	Flow Rate	26
Cavity Size	C10-2	Maximum Flow Rate	26
Installation Torque	37	Pressure Control Range	72 to 3000
Standard Setting Pressure	1450	Pressure Control Sensitivity	305 psi Per Turn
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	28 GAL/MIN, 100 L/MIN
Pressure Control Range	72-3000 PSI, 5-210 BAR
