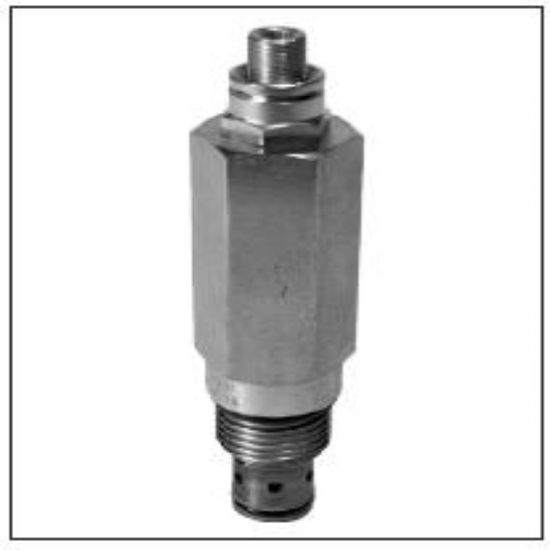

Parker A02B2FYN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A02B2FYN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel (all parts)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	250
Maximum Operating Pressure	6000	Weight	0.44
Maximum Flow Rate	8	Function	Direct Acting
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	5 drops/min @ 1450 Psi (100 bar)	Cavity Size	C08-2
Operation Type	Automatic	Reseat Pressure	n/a
Installation Torque	30	Maximum Tank Pressure	6000
Operating Temperature	-30 to 250	Wire Mesh Screen Included	n/a
Maximum Inlet Pressure Rating	6000	Flow Rate	8
Adjustment Mechanism	Non-Adjustable	Pressure Control Range	29 to 1450
Maximum Pressure Setting	1450	Standard Setting Pressure	725
Pressure Control Sensitivity	n/a	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	8 GAL/MIN, 30 L/MIN
Adjustment Mechanism	Non-Adjustable	Pressure Control Range	29-1450 PSI, 2-100 BAR
