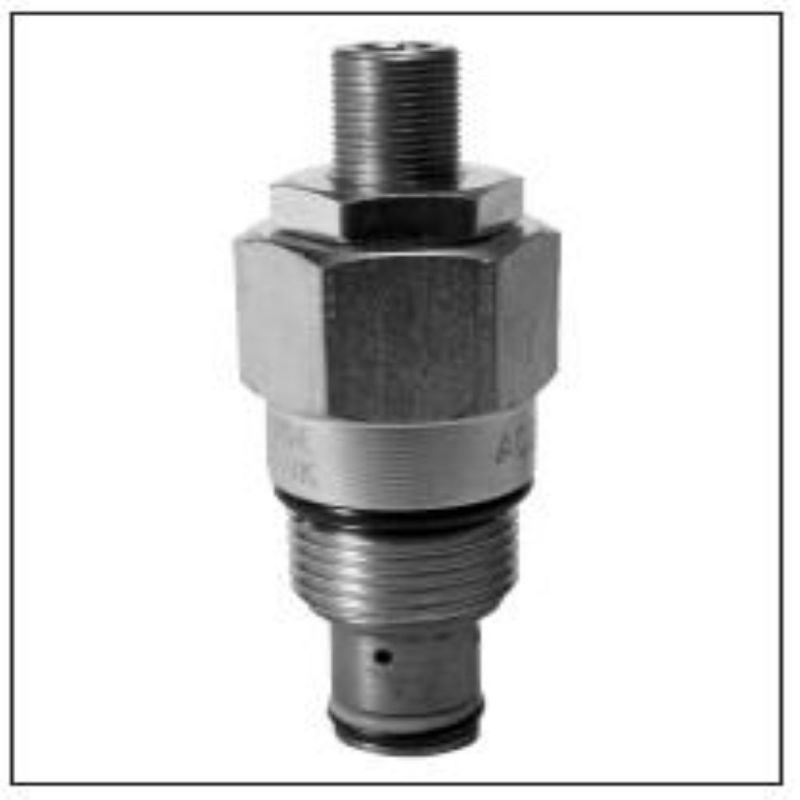

Parker A02A2PWN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A02A2PWN

$58.11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Weight	0.24 lb
Body Material	n/a	Leak Rate	5
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	420 bar
Function	Direct Acting	Flow Rate	1.6 Gal/min
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Flow Rate	1.6 Gal/min
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C08-2
Operation Type	Automatic	Reseat Pressure	n/a
Adjustment Mechanism	Knob	Maximum Tank Pressure	420 bar
Operating Temperature	-34 to 121 °C	Wire Mesh Screen Included	n/a
Maximum Inlet Pressure Rating	420 bar	Installation Torque	40 Nm
Pressure Control Range	145 to 6000 psi	Maximum Pressure Setting	6000 psi
Standard Setting Pressure	200 bar	Pressure Control Sensitivity	800
Seal Material	Nitrile	Flow Rate	1.6 GAL/MIN, 6 L/MIN
Adjustment Mechanism	Knob	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Pressure Control Range	145-6000 PSI, 10-420 BAR
