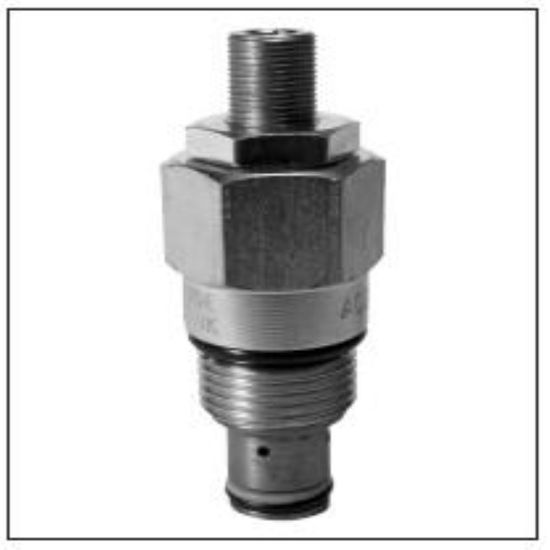

Parker A02A2HTN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A02A2HTN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	For Fluid Type	Synthetic Hydraulic Fluids
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Function	Direct Acting	Flow Rate	6 L/min
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Flow Rate	1.6 Gal/min
Maximum Pressure Setting	210 bar	Weight	0.11 kg
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Cavity Size	C08-2	Operation Type	Automatic
Valve Material	Hardened Steel (all operating parts)	Reseat Pressure	n/a
Installation Torque	30 lb-ft	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	6000 psi	Operating Temperature	-34 to 121 °C
Pressure Control Range	10 to 210 bar	Standard Setting Pressure	100 bar
Wire Mesh Screen Included	n/a	Pressure Control Sensitivity	435 psi Per Turn
Maximum Inlet Pressure Rating	6000 psi	Seal Material	Nitrile
Flow Rate	1.6 GAL/MIN, 6 L/MIN	Adjustment Mechanism	Tamper Resistant
Pressure Control Range	145-3000 PSI, 10-210 BAR	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
