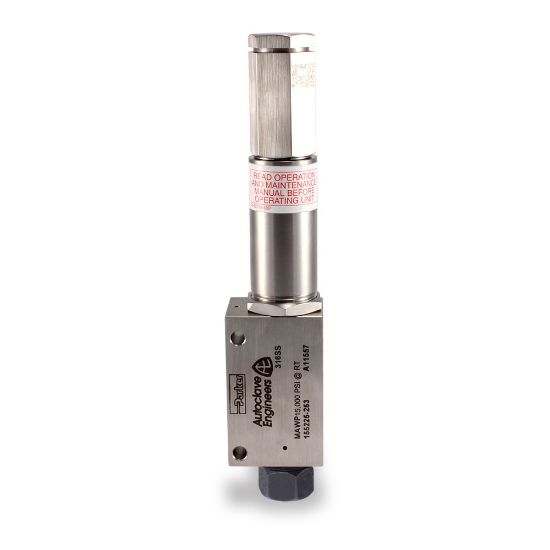

Parker 9MP712F-MARSA-10000-SS - Relief Valves, High Pressure - MAR Series

Parker’s MAR Series (Hard and Soft Seat) relief valves provide reliable venting of gases or liquids for set pressures from 1,500 PSI (103 BAR) minimum to 15,000 PSI (1034 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9MP712F-MARSA-10000-SS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	15000	Maximum Operating Temperature	400
Minimum Operating Temperature	-50	Minimum Operating Pressure	10000
Division	Instrumentation Products Division	Orifice Size	0.156
Outlet Connection Size	FNPT 3/4	Inlet Connection Size	9/16" MPI
Material	Stainless Steel	Maximum Working Pressure (psi)	15000
Maximum Working Temperature (F)	400	Orifice Size	0.156
Minimum Working Temperature (F)	-50	Seat Type	Soft Seat
Outlet Connection	3/4" FNPT	Minimum Working Pressure (psi)	10000
Inlet Connection	9/16" MPI
