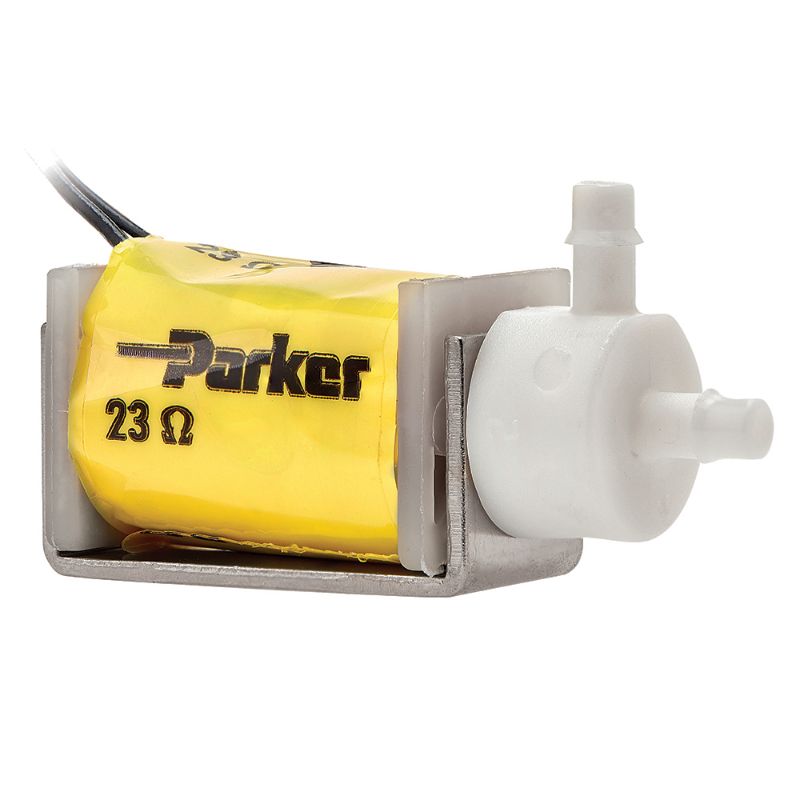

Parker 991-003061-042 - V2 Valve - Miniature Pneumatic Solenoid Valve

Parker V2 is a lightweight 15 mm PBT plastic solenoid valve designed for medical devices and systems that require reliable and consistent performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 991-003061-042

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Normally Open (NO)	Length	1.73 inch
Seal Material	FKM	For Fluid Type	Gases
Maximum Operating Temperature	70 °C	Configuration	n/a
Input Voltage	12 VDC	Power Consumption	2.0 W
Actuation Type	Solenoid	Minimum Operating Temperature	32 °F
Division	Precision Fluidics Division	Operation Type	Electronic
Control Method	Voltage	Max Order Quantity	9
Standard Lead Time	20	Out of Stock Lead Time	40
Mounting Type	Mounting Screw	Connection Type	Barb for I.D. Tubing
Width	15.9 mm	Electrical Connection	4-Pin PCB
Height	17.0 mm	Vacuum to Pressure Range	686.0 mm-Hg to Pressure Rating
Orifice Size	1.27 mm	Industry Application	Patient Simulators
Leak Rate	< 0.2 cm3/min	Body Material	PBT (Polybutylene Terephthalate)
Maximum Flow Rate	20 SLPM	Weight	34.3 g
Flow Rate	up to 20 SLPM	Connection Size	3.18 mm
Shipping Weight	0.35 lbs	Cycles per Lifetime	27 Million
Maximum Operating Pressure	2.07 bar	Response Time	< 30 ms Cycling
Voltage (VDC)	24	Valve Configuration Type	3-Way Normally Open
Electrical Connection	4 PC Pin Mount	Pneumatic Connection Stem	1/8" Barbs
Pneumatic Body Connection	1/8" Barbs	Application Pressure Requirement	0-30 psi / .050" Orifice
