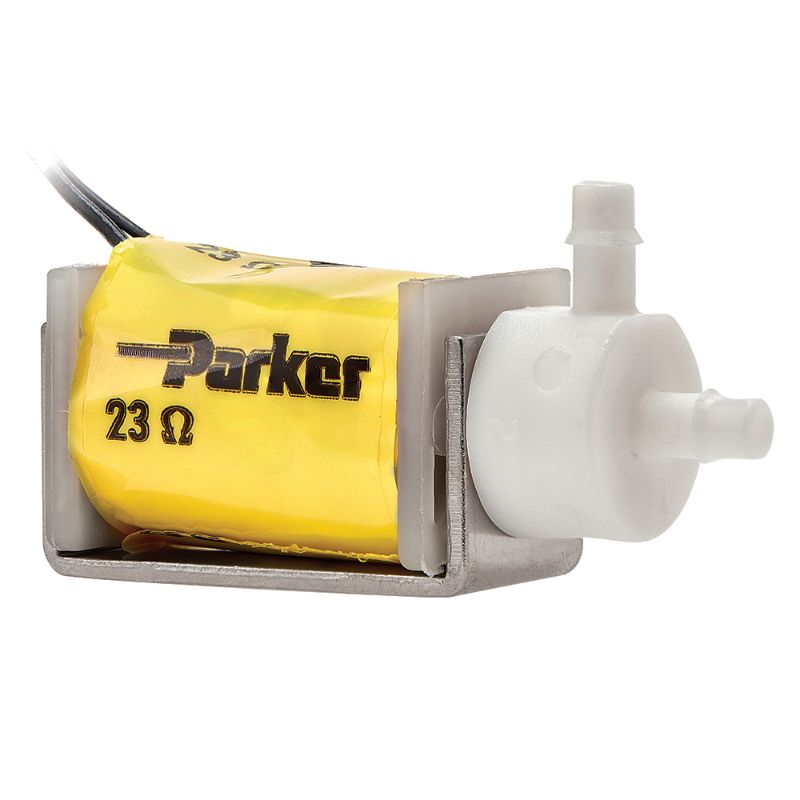

Parker 991-003061-020 - V2 Valve - Miniature Pneumatic Solenoid Valve

Parker V2 is a lightweight 15 mm PBT plastic solenoid valve designed for medical devices and systems that require reliable and consistent performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 991-003061-020

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	1.73 inch	Seal Material	FKM
For Fluid Type	Gases	Maximum Operating Temperature	70 °C
Configuration	n/a	Input Voltage	12 VDC
Function	2-Way	Connection Size	1/8 inch
Power Consumption	2.0 W	Actuation Type	Solenoid
Division	Precision Fluidics Division	Operation Type	Electronic
Minimum Operating Temperature	0 °C	Control Method	Voltage
Max Order Quantity	9	Standard Lead Time	20
Out of Stock Lead Time	40	Mounting Type	Mounting Screw
Connection Type	Barb for I.D. Tubing	Industry Application	Ventilators
Width	15.9 mm	Electrical Connection	18" Wire Leads
Height	17.0 mm	Vacuum to Pressure Range	27 Inch-Hg to Pressure Rating
Orifice Size	1.27 mm	Leak Rate	< 0.2 cm3/min
Body Material	PBT (Polybutylene Terephthalate)	Maximum Flow Rate	20 SLPM
Weight	1.2 oz	Flow Rate	up to 20 SLPM
Shipping Weight	0.35 lbs	Cycles per Lifetime	27 Million
Maximum Operating Pressure	2.07 bar	Response Time	< 30 ms Cycling
Voltage (VDC)	12	Valve Configuration Type	2-Way Normally Closed
Electrical Connection	18" Wire Leads	Pneumatic Body Connection	1/8" Barbs
Pneumatic Connection Stem	2-Way Valve / None	Application Pressure Requirement	0-30 psi / .050" Orifice
