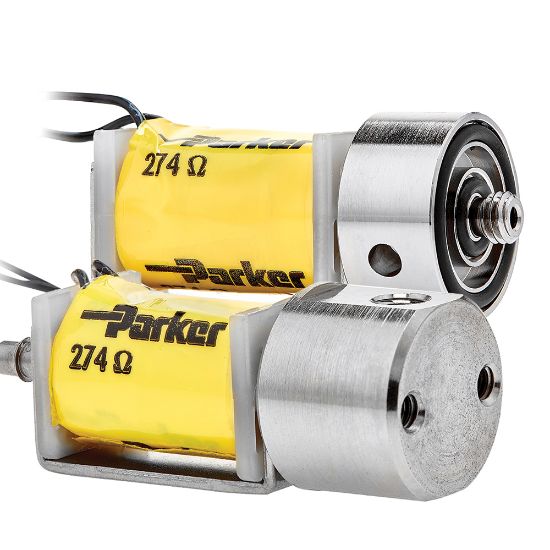

Parker 991-000007-007 - Series 11/25/26 - Miniature Solenoid Valve

Parker’s 11/25/26 miniature solenoid valves are designed for medical, analytical, and clinical devices that require reliable consistent performance with low outgassing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 991-000007-007

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6.9 bar	Function	Normally Open (NO)
Seal Material	FKM	For Fluid Type	Gases
Configuration	n/a	Weight	60 g
Input Voltage	12 VDC	Maximum Operating Temperature	158 °F
Power Consumption	2.0 W	Actuation Type	Solenoid
Division	Precision Fluidics Division	Operation Type	Electronic
Minimum Operating Temperature	0 °C	Control Method	Current or Voltage
Max Order Quantity	9	Out of Stock Lead Time	40
Mounting Type	Mounting Screw	Orifice Size	0.76 mm
Body Material	Brass 360 H02	Width	0.63 inch
Connection Size	1/8 inch Barb for I.D. Tubing	Connection Type	Barb
Electrical Connection	18" Wire Leads	Height	17.0 mm
Thermal Compensation	Non-Thermally Compensated	Standard Lead Time	25
Leak Rate	< 0.016 cm3/min of Air	Shipping Weight	0.4
Cycles per Lifetime	202 Million	Vacuum to Pressure Range	Vacuum to Pressure Rating
Length	51.7 mm	Flow Rate	35 SLPM
Maximum Flow Rate	35 SLPM	Industry Application	Sieve bed switching
Voltage (VDC)	12	Electrical Connection	18" Wire Leads
Body/Elastomer Materials	Brass/FKM	Pneumatic Connection Stem	1/8" Barbs
Application Pressure Requirement	0-100 psi / .030" Orifice	Valve Configuration Type	2-Way Normally Open
Pneumatic Body Connection	1/8" Barbs
