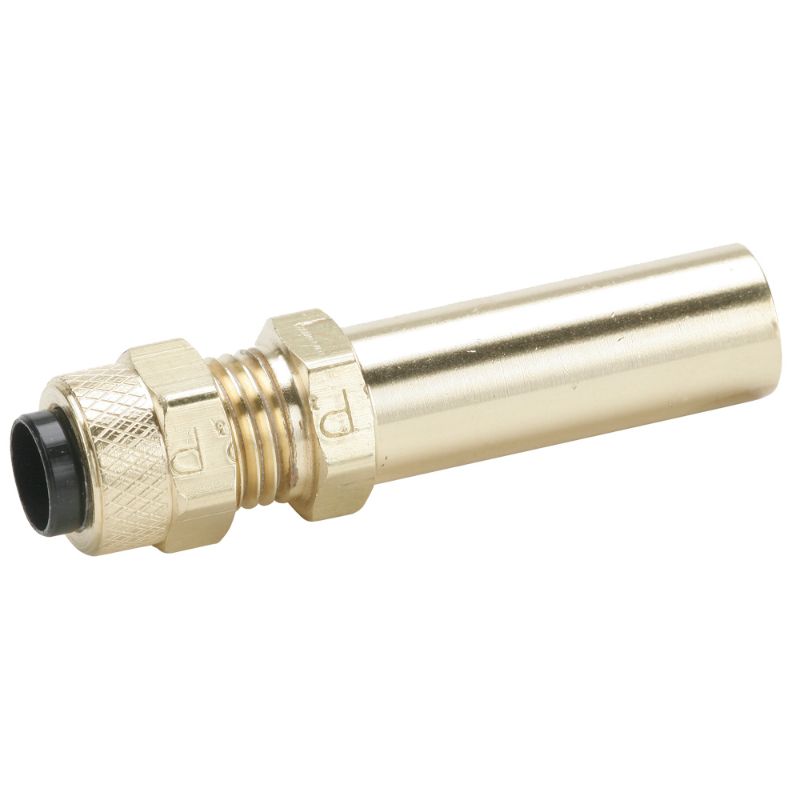

Parker 97P-4-6 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 97P-4-6

$30.60

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	150 °F
Nut Material	Brass	Application	Dental, Packaging, Machine tool, Car wash
Maximum Operating Pressure	150 psi	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Body Material	Brass	Division	Fluid System Connectors Division
Sleeve Material	Brass, Acetal Copolymer	Minimum Operating Temperature	-17 °C
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Standpipe
Connection 2 Style	Tube Stem	Shape	Tube Reducer
Connection 2 Thread Size (inch)	3/8

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
