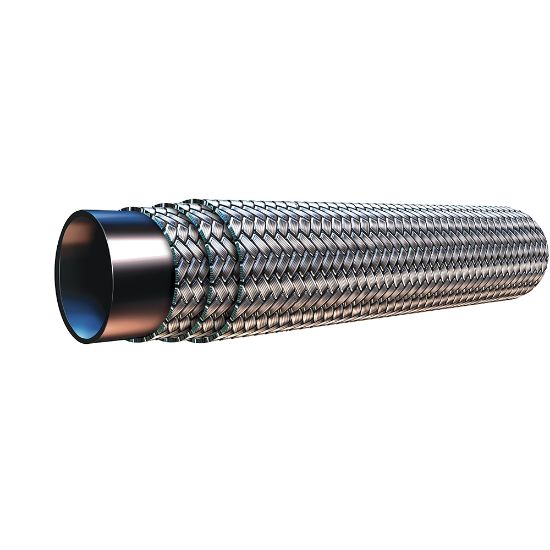

Parker 955B-12 - High Pressure PTFE Hose

PTFE High Pressure Hydraulic Hose Assemblies have exceptional chemical compatibility, resist moisture, and handle pressures up to 5,500 psi. They are designed for high temp hydraulics,chemical transfer, and compressor discharge applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 955B-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-65	Design Factor	4:1
Maximum Operating Temperature	400	Outside Diameter	1.080
Specifications Met	N/A	Cover Material	n/a
Compatible Fitting	95 Series	Size	-12
Hose Inner Tube Material	Natural	Application	Adhesive Dispensing
Media	Chemicals (Adhesive)	Weight	0.92
Product Style	Static Dissipative	Minimum Bend Radius	7-3/4
Maximum Operating Pressure	5500	Hose Reinforcement Material	Multiple Braids of Stainless Steel
Inside Diameter	5/8	Maximum Working Pressure (psi)	5,500
Dash Number	-12

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
