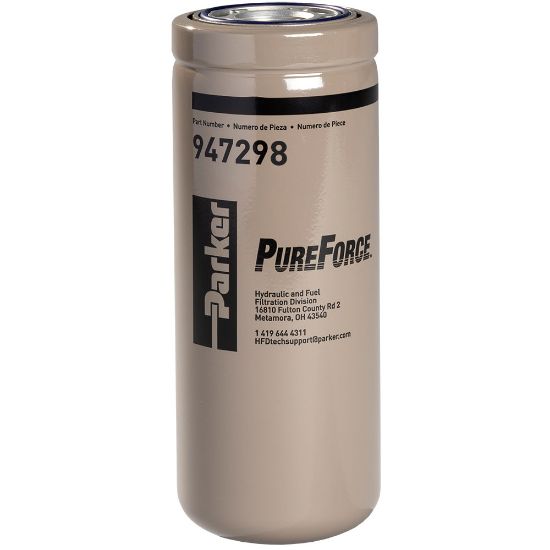

Parker 947298 - PureForce Medium Pressure Spin-On

Parker’s dedication to protecting critical process equipment has led to the development of our new PureForce medium pressure spin on filte. PureForce elements provide filtration for hydraulic systems up to 500psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 947298

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Collapse Pressure	10.4 bar	Media Material	Maximum Performance Glass
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Operating Temperature	-20 to 225 °F
Outside Diameter	95.3 mm	Flow Range	35 gpm (132 lpm)
Length	9.5 in (241.3 mm)	Micron Rating	17

Product resources

Distributor Support, Literature and Reference Materials

2300-PureForce Medium Pressure Spin-On (PDF)

Literature and Reference Materials

EMHFF - The Handbook of Hydraulic Filtration (PDF)
