Parker 945900Q - Replacement Elements - Low Pressure Filter GLF Series

The Parker GLF Series Low Pressure Return Line Filters combine high efficiency Microglass filtration with low cost installation in a new patented element design. Easily removed for maintenance, this filter offers both convenience and dependability.

Availability:	Quote Required
Partner Available:	71 In Stock

Brand Parker

Part No. 945900Q

$263.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	Cartridge
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Length	double
Filter Housing Series	GLF3	Seal Material	Nitrile
Filter Element	10Q Microglass	UOM	EA
Seals	NBR: Nitrile	Efficiency βx(C) ≥ 1000	12 µ
Media	10 Micron Absolute	Collapse Pressure (psi)	150 psi
Pkg Qty	1	Efficiency βx(C) ≥ 200	9 µ
Collapse Pressure (bar)	10.3 bar	Media Type	Microglass
Inner Support Cylinder Material	Steel tin plated	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides

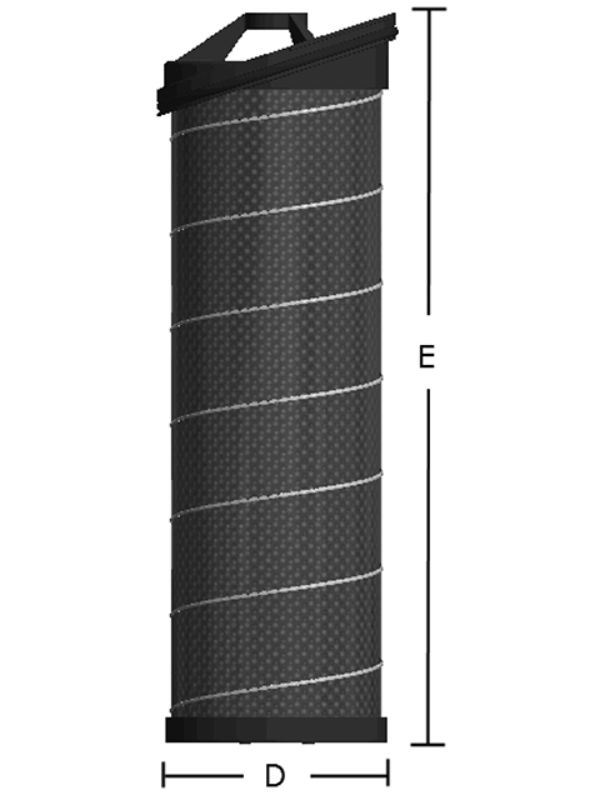

Efficiency βx(C) ≥ 200	9 µ	D Dimension	4.78 in (121.4 mm)
Media	10 Micron Absolute	E Dimension	19 in (482.6 mm)
Collapse Pressure (psi)	150 psi	Collapse Pressure (bar)	10.3 bar
Parker Group	Filtration	Efficiency βx(C) ≥ 1000	12 µ
Bottom Endcap Material	Glass reinforced nylon	Glue Side Seam Adhesive	Epoxy
Top Endcap Material	Glass reinforced nylon	Glue Endcaps Adhesive	Epoxy
Parker Division	Hydraulic Filter	Seals	NBR: Nitrile
Media Type	Microglass	Series	ParFit
