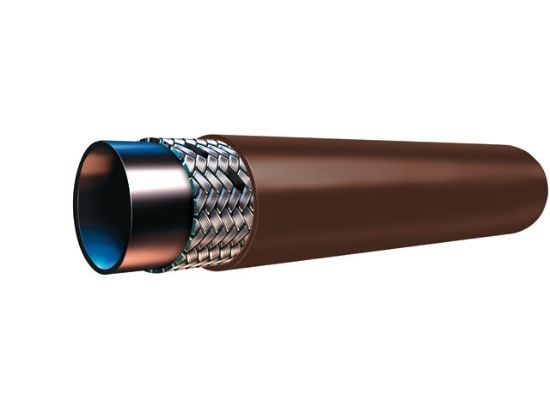

Parker 943B-10 - 943B Series

High Pressure Fluoropolymer (Teflon®) High Temperature Static Dissipative Hose

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 943B-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Working Pressure	3000 PSI (210 bar)
Mating Fitting Series	94	Pkg Qty	1
Pkg Qty/UOM	1 FT	Inner Diameter	0.5 Inch
Material	Fluoropolymer (Teflon®)	Inner Diameter Inch/mm	Inch
Specification	SAE 100R17 and SAE 100R7	Distinct Properties	High Temperature Static Dissipative
Parker Division	Parflex	Material	Fluoropolymer (Teflon®)
Inch/Metric	Inch	Mating Fitting Series	94
Series	943B	Inner Diameter	0.5 Inch
Parker Group	Fluid Connector	Hose Pressure Range	High
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)
