Parker 941390Q - Replacement Elements - High Pressure Filter WPF Series

Parker engineers have developed what soon will be the industry standard in high pressure hydraulic filtration. The 7,000 psi WPF series incorporates many advanced features designed for one reason: to improve your bottom line.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 941390Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Element Type	Coreless	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Type	Hydraulic Filter Element	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Seal Material	Ethylene Propylene	Compatible Series	WPF3
Length	single	Micron Rating	05QE microglass
Seals	EPR: Ethylene Propylene	Efficiency βx(C) ≥ 200	5 µ
Pkg Qty	1	Collapse Pressure (psi)	300 psi
Collapse Pressure (bar)	20.7 bar	Media Type	Microglass
UOM	EA	Efficiency βx(C) ≥ 1000	7 µ

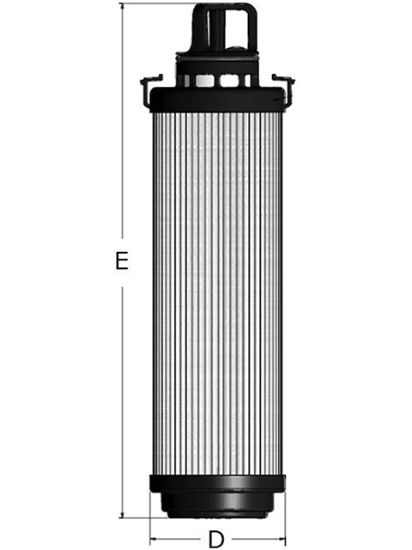

Media	5 Micron Absolute	D Dimension	2.709 in (68.8 mm)
Efficiency βx(C) ≥ 200	5 µ	Top Endcap Material	Glass reinforced nylon
Efficiency βx(C) ≥ 1000	7 µ	Collapse Pressure (psi)	300 psi
Series	ParFit	Seals	EPR: Ethylene Propylene
E Dimension	10.35 in (262.9 mm)	Media	5 Micron Absolute
Bottom Endcap Material	Glass reinforced nylon	Media Type	Microglass
Parker Division	Hydraulic Filter	Glue Endcaps Adhesive	Polyurethane
Glue Side Seam Adhesive	Polyurethane	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Parker Group	Filtration	Collapse Pressure (bar)	20.7 bar
