Parker 940802 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series

Name: Parker 940802 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series
SKU: 940802
Price: 165.85 USD
Availability: InStock

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

AFP Availability:

51 In Stock

Mooresville, NC	35
North Chesterfield, VA	10
Jacksonville, FL	5
Summerville, SC	1

Partner Available:

89 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 940802

$165.85/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Compatible Series	Moduflow™
Length	Double	Product Type	Hydraulic Filter Element
Seal Material	Nitrile	Micron Rating	40.0 MICRON
Filter Element Type	Cartridge	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Media	Synthetic
Filter Housing Series	RFP 3 psi bypass	Seal Material	Nitrile
Length	double	Micron Rating	40 µm
UOM	EA	Collapse Pressure (bar)	5 bar
Media Type	Synthetic (Polyester)	Seals	NBR: Nitrile
Pkg Qty	1	Efficiency βx(C) ≥ 200	40 (nominal) µ
Collapse Pressure (psi)	73 psi	Glue Endcaps Adhesive	Epoxy

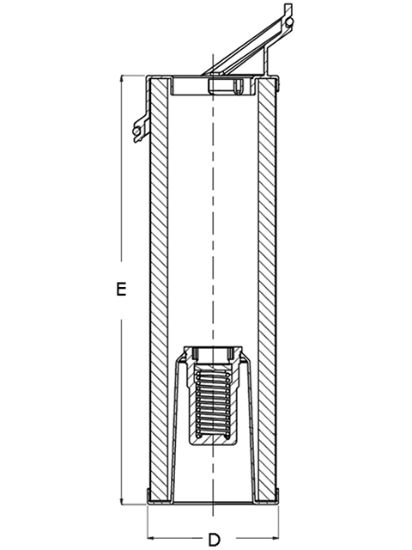

D Dimension	3.701 in (94 mm)	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	Series	ParFit
Top Endcap Material	Glass reinforced nylon	Outer Support Cylinder Material	Steel tin plated
Glue Side Seam Adhesive	Epoxy	Parker Group	Filtration
Bottom Endcap Material	Glass reinforced nylon	Media Type	Synthetic (Polyester)
Media Composition Detail	Single layer synthetic (polyester) with coated wire mesh on both sides	E Dimension	21.5 in (546.1 mm)
Efficiency βx(C) ≥ 200	40 (nominal) µ	Collapse Pressure (psi)	73 psi
Media	40 Micron Nominal	Collapse Pressure (bar)	5 bar

Product resources

Literature and Reference Materials
