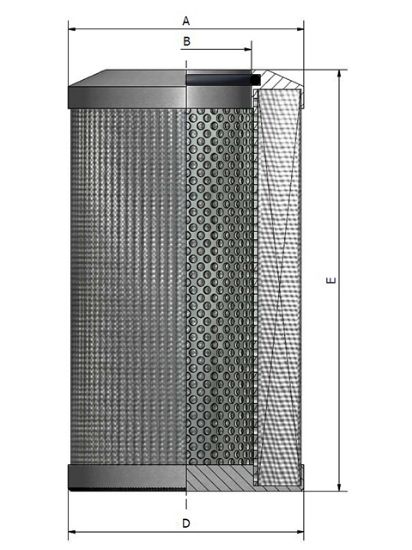

Parker 940742Q - Replacement Elements - High Pressure Filter 100P Series

The Parker high pressure 100P series replacement elements are engineered with the latest in Microglass technology. The element can be serviced with only removing the end of the bowl for applictions where space is premium.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 940742Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	Double	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	10QX Microglass	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Series	100P-2	Seal Material	Nitrile
Seal Material	Nitrile	Length	double
Location	US	Filter Element	10QX Microglass
Filter Housing Series	100P-2	Pkg Qty	1
Efficiency βx(C) ≥ 200	9 µ	Seals	NBR: Nitrile
Media	10 Micron Absolute	Efficiency βx(C) ≥ 1000	12 µ
Media Type	Microglass	Collapse Pressure (psi)	3000 psi
Collapse Pressure (bar)	207 bar	UOM	EA
E Dimension	26.618 in (676.1 mm)	Glue Side Seam Adhesive	Epoxy
Collapse Pressure (psi)	3000 psi	Bottom Endcap Material	Steel
Inner Support Cylinder Material	Steel tin plated	Media	10 Micron Absolute
Glue Endcaps Adhesive	Epoxy	Media Composition Detail	Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid
Parker Division	Hydraulic Filter	Top Endcap Material	Steel
A Dimension	3.5 in (88.9 mm)	Series	ParFit
Efficiency βx(C) ≥ 200	9 µ	Seals	NBR: Nitrile
Media Type	Microglass	Parker Group	Filtration
Efficiency βx(C) ≥ 1000	12 µ	Collapse Pressure (bar)	207 bar
