Parker 939065Q - Replacement Elements - High Pressure Filter 100P Series

The Parker high pressure 100P series replacement elements are engineered with the latest in Microglass technology. The element can be serviced with only removing the end of the bowl for applictions where space is premium.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 939065Q

$751.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Length	Double	Product Series	100P-2
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Location	EMEA and US
Filter Housing Series	100P-2	Seal Material	Nitrile
Filter Element	05Q Microglass	Length	double
Seals	NBR: Nitrile	Media Type	Microglass
Collapse Pressure (bar)	20 bar	UOM	EA
Pkg Qty	1	Media	5 Micron Absolute
Collapse Pressure (psi)	290 psi	Efficiency βx(C) ≥ 200	6 µ

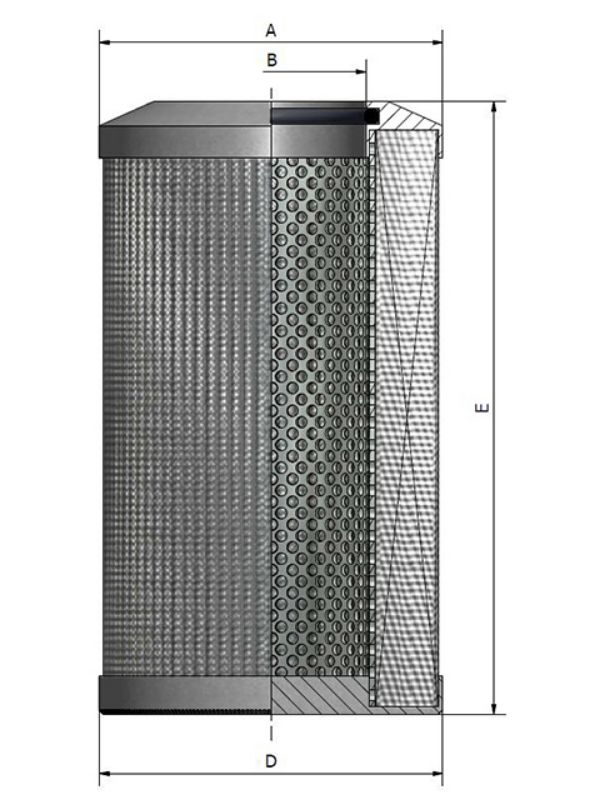

D Dimension	3.74 in (95 mm)	Top Endcap Material	Mild steel zinc plated
A Dimension	3.74 in (95 mm)	Collapse Pressure (psi)	290 psi
Parker Group	Filtration	Glue Side Seam Adhesive	Epoxy
Inner Support Cylinder Material	Mild steel zinc plated	Collapse Pressure (bar)	20 bar
E Dimension	24.606 in (625 mm)	Bottom Endcap Material	Mild steel zinc plated
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Glue Endcaps Adhesive	Epoxy
Series	ParFit	Efficiency βx(C) ≥ 200	6 µ
Media Type	Microglass	Media	5 Micron Absolute
B Dimension	2.244 in (57 mm)	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile
