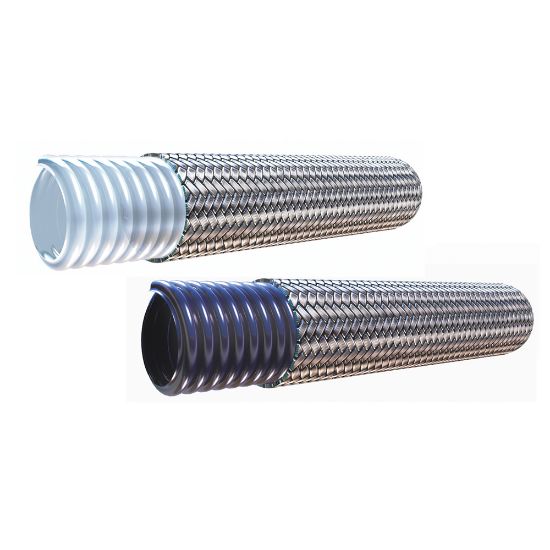

Parker 939-10 - PTFE Hose - Convoluted

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 939-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hose Reinforcement Material	Stainless Steel	Specifications Met	FDA 21 CFR 177.1550 (Tube)
Maximum Operating Pressure	1000	Application	Fluid Handling
Minimum Operating Temperature	-100	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Compatible Fitting	93N Series	Size	-10
Cover Material	n/a	Maximum Operating Temperature	450
Vacuum Pressure Rating	28	Minimum Bend Radius	3
Media	Chemicals	Weight	0.24
Inside Diameter	5/8	Division	Parflex Division
Outside Diameter	0.880	Design Factor	4:1
Hose Type	Natural PTFE	Size	-10
Hose I.D. (inch)	5/8
