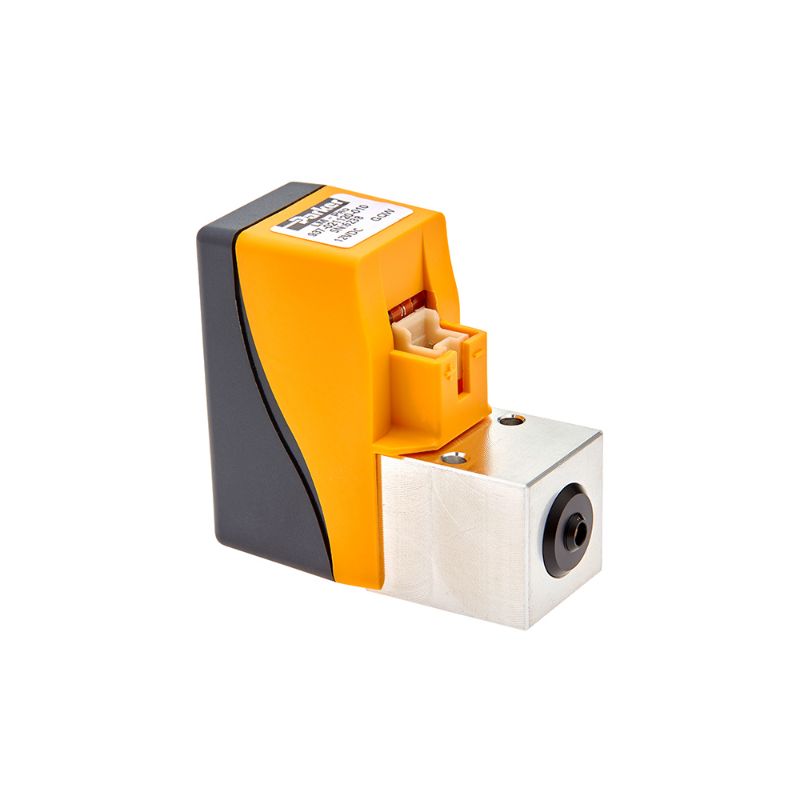

Parker 937-021050-000 - LM-Pro Linear Motor Proportional Valve

The LM-Pro miniature proportional valve provides a linear controllable flow range from 0.5 to 540 slpm. Ideal for respiratory care applications requiring precise control over a wide flow range.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 937-021050-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cleaning Features	Oxygen Clean	Height	1.44 inch
Power Consumption	2.0	Seal Material	FKM
Division	Precision Fluidics Division	Poppet Material	Stainless Steel 303
Body Material	Aluminum 6061	Max Order Quantity	15
Cycles per Lifetime	up to 100 Million	Pneumatic Connection Type	Manifold Mount
Weight	1.29 Oz	Valve Type	2-Way Normally Closed
Wetted Material	Elastomer Bonding Agent	Length	39.9 mm
Control Method	Current or Voltage	Standard Lead Time	5
Width	0.72 in \| 18.3 mm	Shipping Weight	0.58
Electrical Connection	JST SM02B-PASS-TB	Product Weight	0.0806
Leak Rate	1.00 cm3/min of Air	Diaphragm Material	Diaphragm Fluorosilicone
Out of Stock Lead Time	30	Thermal Compensation	Non-Thermally Compensated
Orifice Size	0.121 in / 3.07 mm	Power Supply Voltage	5
Pressure Control Range	0-100 psi	Filter Included	None
