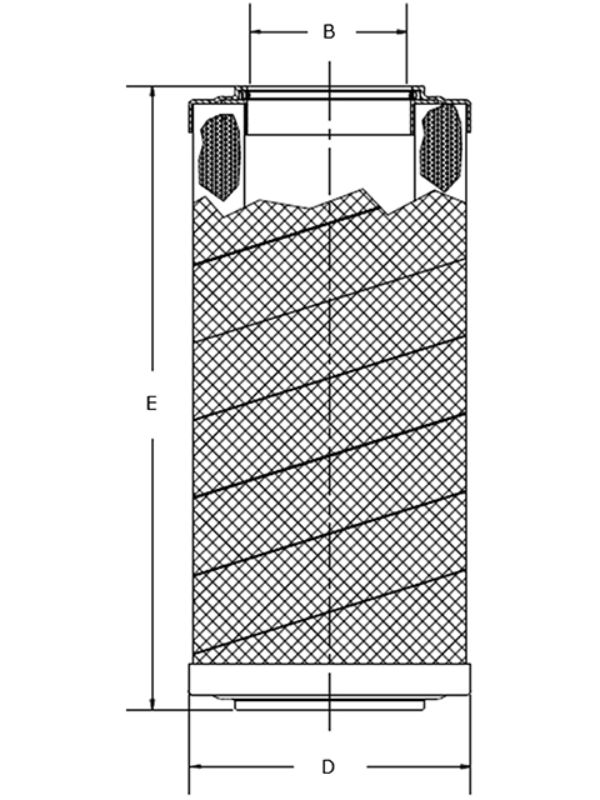

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 936710Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series

Name: Parker 936710Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series
SKU: 936710Q
Price: 133.11 USD
Availability: InStock

The Parker medium pressure CN series replacement elements are engineered with the latest in Microglass technology. CN Filters utilize a reusable core which remains in service through the life of the assembly.

AFP Availability:

13 In Stock

Mooresville, NC

Partner Available:

28 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 936710Q

$133.11/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	Coreless
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element	02Q Microglass	Seal Material	Fluorocarbon
Length	single	Filter Housing Series	40CN2
Efficiency βx(C) ≥ 200	4 µ	Seals	FKM: Fluorocarbon
UOM	EA	Collapse Pressure (bar)	10.3 bar
Media Type	Microglass	Pkg Qty	1
Efficiency βx(C) ≥ 1000	5 µ	Media	2 Micron Absolute
Collapse Pressure (psi)	150 psi	Parker Division	Hydraulic Filter
Media Type	Microglass	Series	ParFit
Top Endcap Material	Glass reinforced nylon	Efficiency βx(C) ≥ 1000	5 µ
Element Length	Double	D Dimension	0.315 in (8 mm)
Bottom Endcap Material	Glass reinforced nylon	E Dimension	8.386 in (213 mm)
Glue Endcaps Adhesive	Polyurethane	Efficiency βx(C) ≥ 200	4 µ
Collapse Pressure (bar)	10.3 bar	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Collapse Pressure (psi)	150 psi	Operating Temperature	-40F to 225F (-40C to 107C)
Seals	FKM: Fluorocarbon	Parker Group	Filtration
Glue Side Seam Adhesive	Polyurethane	Media	2 Micron Absolute
Filter Media Code	02QE	B Dimension	1.693 in (43 mm)
