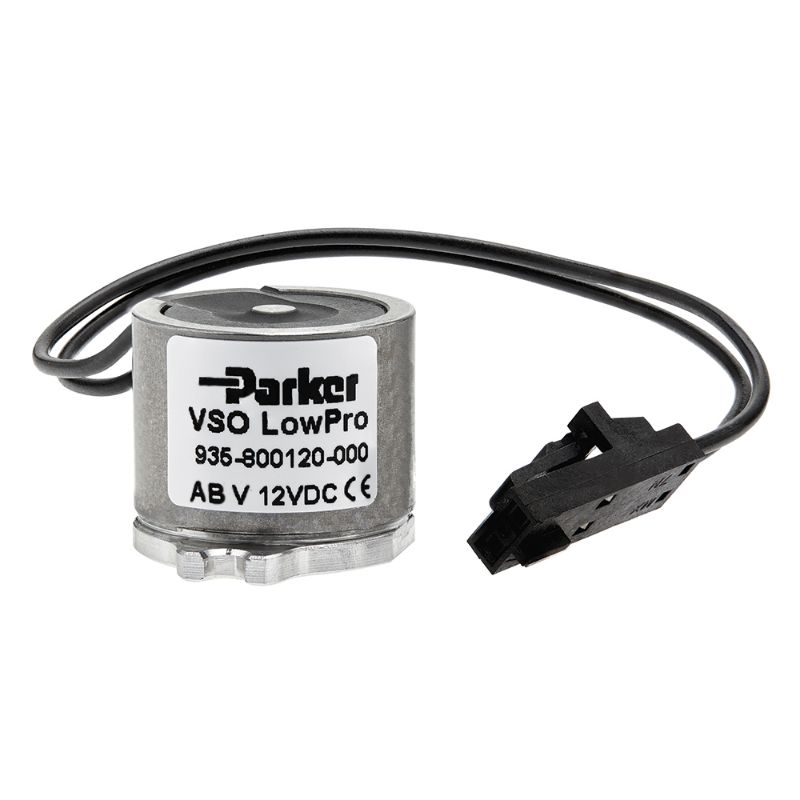

Parker 935-300120-000 - VSO® LowPro Miniature Proportional Valve

The VSO® LowPro is a miniature proportional valve designed for flow rates up to 57 SLPM with a typical power requirement of 1 Watt, and just 16 mm wide by 14 mm tall. Ideal for Respiratory, Patient Monitoring and Flow or Pressure Control Applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 935-300120-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.42 oz	Maximum Operating Pressure	100 psi
Width	0.63 inch	Actuation Type	Solenoid
Configuration	n/a	Electrical Connection	4.5" Wire Leads
Orifice Size	0.030 inch	Division	Precision Fluidics Division
Mounting Type	Manifold	Function	Normally Closed (NC)
Body Material	Aluminum 6061	Seal Material	FKM
Response Time	10 ms Typical	Wetted Material	Urethane
Flow Rate	up to 31.5 SLPM	Thermal Compensation	Non-Thermally Compensated
Spring Material	Stainless Steel 17-7	For Fluid Type	Gases
Input Voltage	12 VDC	Control Method	Current or Voltage
Armature Material	1018 Steel (Nickel-plated)	Maximum Operating Temperature	131 °F
Operation Type	Electronic	Connection Size	#2-56 x 3/16" Socket Head Cap screw
Industry Application	Portable Oxygen Concentrators	Length	20 mm
Minimum Operating Temperature	0 °C	Height	0.55 inch
Connection Type	Mounting Screw	Power Consumption	1.0 W Typical
Cycles per Lifetime	100 Million	Maximum Flow Rate	31.5 SLPM
Vacuum to Pressure Range	27 Inch-Hg to Pressure Rating	Leak Rate	< 0.5 cm3/min of Air
Voltage (VDC)	12	Orifice Size (inch)	0.030
