Parker 934473Q - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 934473Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Efficiency βx(C) ≥ 1000	5 µ	Media	2 Micron Absolute
Seals	FKM: Fluorocarbon	UOM	EA
Media Type	Microglass	Pkg Qty	1
Collapse Pressure (bar)	10.3 bar	Efficiency βx(C) ≥ 200	4 µ
Collapse Pressure (psi)	150 psi	Media	2 Micron Absolute

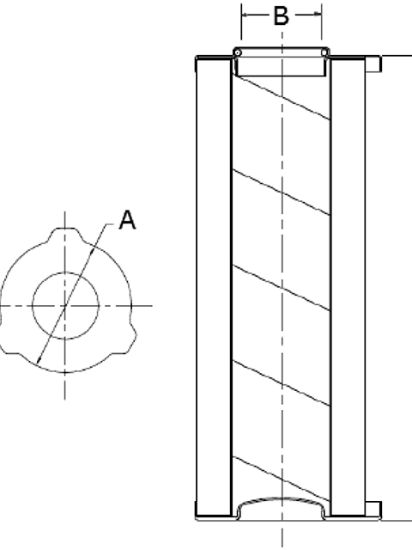

Efficiency βx(C) ≥ 200	4 µ	D Dimension	3 in (76.2 mm)
E Dimension	12.728 in (323.3 mm)	Parker Group	Filtration
Seals	FKM: Fluorocarbon	Glue Side Seam Adhesive	Epoxy
Top Endcap Material	Mild steel	Parker Division	Hydraulic Filter
Glue Endcaps Adhesive	Epoxy	Media Type	Microglass
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Series	ParFit
Bottom Endcap Material	Mild steel	Efficiency βx(C) ≥ 1000	5 µ
Inner Support Cylinder Material	Steel tin plated	B Dimension	1.512 in (38.4 mm)
Collapse Pressure (bar)	10.3 bar	A Dimension	3 in (76.2 mm)
Collapse Pressure (psi)	150 psi
