Parker 933090Q - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 933090Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seals	FKM: Fluorocarbon	UOM	EA
Efficiency βx(C) ≥ 1000	7 µ	Media Type	Microglass
Media	5 Micron Absolute	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Pkg Qty	1
Efficiency βx(C) ≥ 200	5 µ	B Dimension	3.28 in (83.3 mm)
Top Endcap Material	Steel	Parker Division	Hydraulic Filter
Media Type	Microglass	Glue Endcaps Adhesive	Epoxy
Seals	FKM: Fluorocarbon	Glue Side Seam Adhesive	Epoxy
Parker Group	Filtration	Media Composition Detail	Multilayer fiberglass with epoxy coated wire mesh on both sides

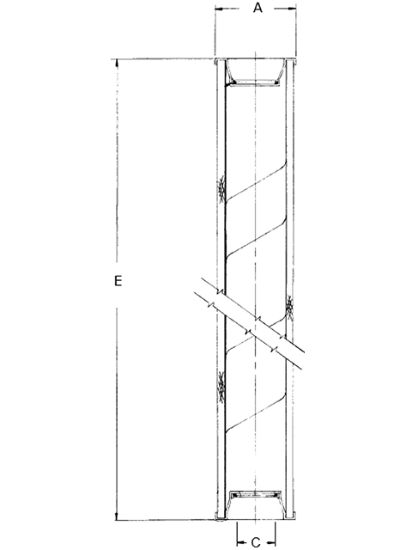

A Dimension	5.949 in (151.1 mm)	Bottom Endcap Material	Steel
Competitor	INTERNORMEN	Collapse Pressure (bar)	10.3 bar
Efficiency βx(C) ≥ 200	5 µ	Collapse Pressure (psi)	150 psi
Series	ParFit	Efficiency βx(C) ≥ 1000	7 µ
C Dimension	3.28 in (83.3 mm)	Inner Support Cylinder Material	Steel tin plated
E Dimension	38.65 in (981.7 mm)	Media	5 Micron Absolute
D Dimension	5.949 in (151.1 mm)
