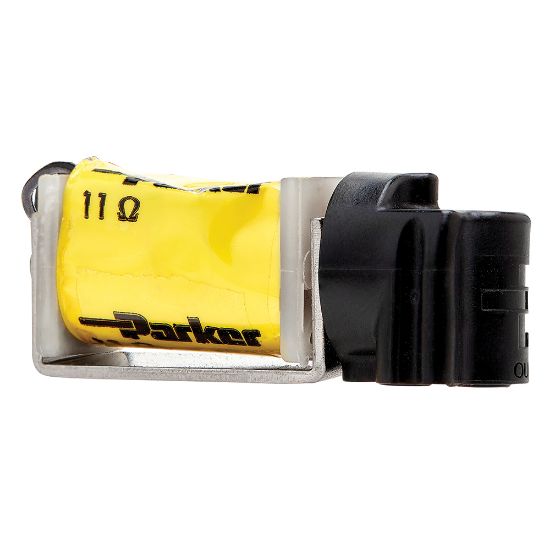

Parker 931-311052-000 - VSO-MI - Miniature Proportional Valve

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 931-311052-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shipping Weight	0.28	Function	2-Way
Standard Lead Time	20	Cycles per Lifetime	26 Million
Input Voltage	5.5	Height	0.74
Weight	1.23	Electrical Connection	Quick Connect Spade
Minimum Operating Temperature	32	Power Consumption	2.0
Operation Type	Electronic	Max Order Quantity	9
Maximum Operating Pressure	150	Industry Application	Ventilators
Maximum Flow Rate	25	Division	Precision Fluidics Division
Mounting Type	Manifold	Actuation Type	Solenoid
Configuration	n/a	Length	1.77
Seal Material	FKM	Orifice Size	0.031
Connection Type	Mounting Screw	Maximum Operating Temperature	140
Vacuum to Pressure Range	27 Inch-Hg to Pressure Rating	Flow Rate	up to 25
For Fluid Type	Gases	Leak Rate	< 0.016 cm3/min of Nitrogen @ 150 Psi
Control Method	Current or Voltage	Out of Stock Lead Time	40
Thermal Compensation	Thermally Compensated	Width	0.66
Connection Size	4-40 x 3/4"	Body Material	PBT (Polybutylene Terephthalate)
Electrical Connection	Quick Connect Spade	Maximum Operating Pressure/Orifice Size	150 psid/.031"
Maximum Operating Voltage	5.5 VDC	Body/Elastomer Materials	PBT/FKM
Pneumatic Connection	Manifold Mount

Product resources

Literature and Reference Materials

Miniature Proportional Valves Catalog: PPF-MPV-002/US (PDF)
