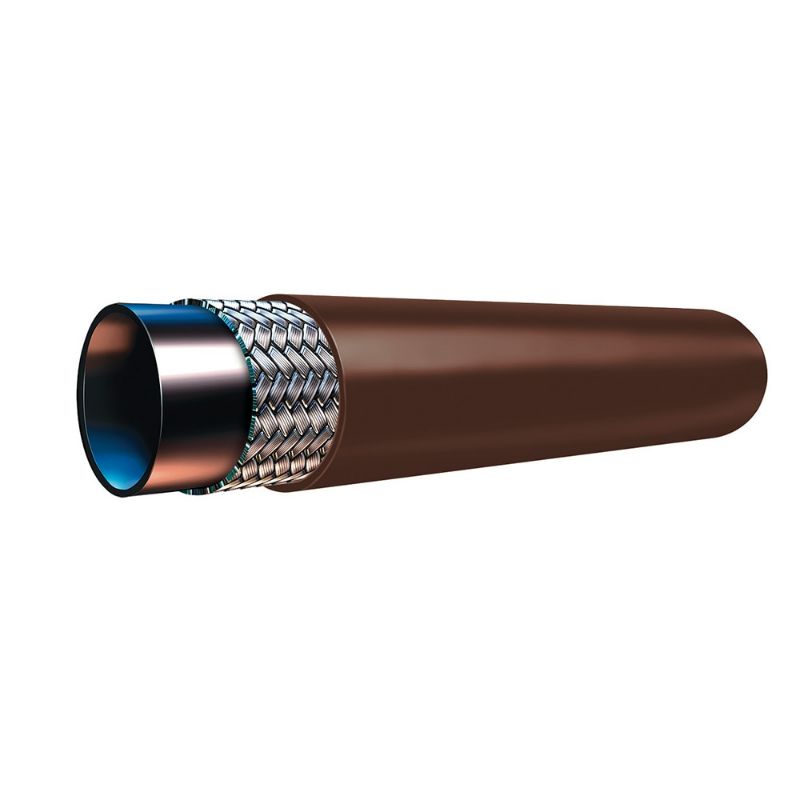

Parker 929BJ-6 - Static Dissipative Hose - 929BJ

Parker's 929BJ hose features a static-dissipative PTFE core tube and a brown silicone, steam cleanable jacket to provide a smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 929BJ-6

$46.35/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.34 kg/m
Maximum Operating Pressure	172 bar	Outside Diameter	17.8 mm
Vacuum Pressure Rating	711.2 Inch-Hg	Inside Diameter	5/16 inch
Product Type	PTFE Hose	Cover Material	Silicone
Application	Adhesive Dispensing	Minimum Bend Radius	4 inch
Specifications Met	SAE J517 and 100R1, Type 4B	Hose Reinforcement Material	Braid of 304 Stainless Steel
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Media	Water
Compatible Fitting	91N Series	Product Style	Static Dissipative
Design Factor	4:1	Minimum Operating Temperature	-65 °F
Division	Parflex Division	Maximum Operating Temperature	232 °C
Size	-6	Hose I.D. (inch)	5/16
