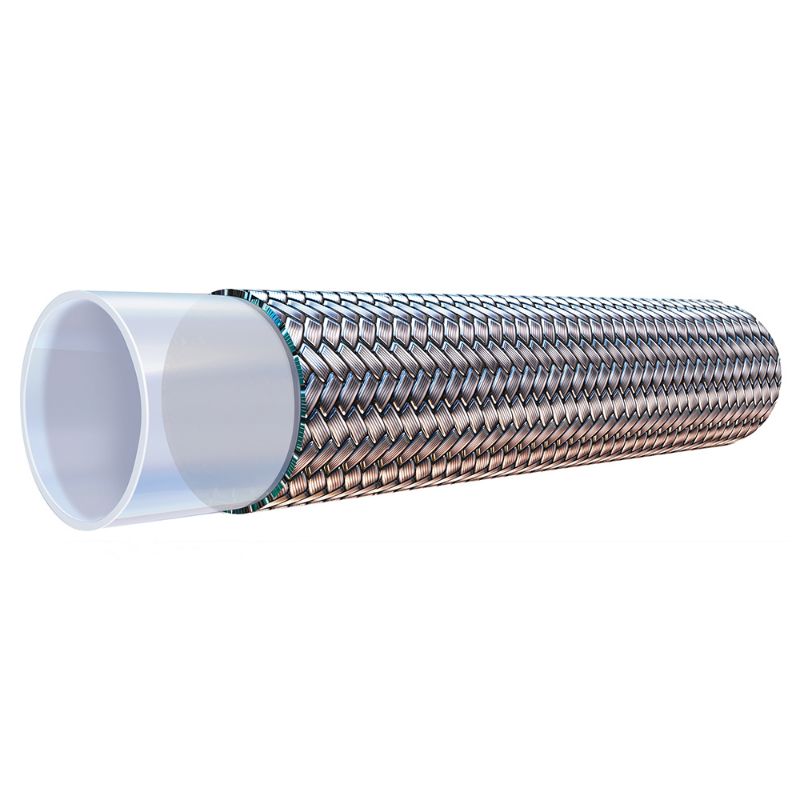

Parker 929-4 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

AFP Availability:	Quote Required
Partner Available:	85 In Stock

Brand Parker

Part No. 929-4

$10.78/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Parflex Division
Cover Color	Natural	Size	-4
Maximum Operating Temperature	232 °C	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	3000 psi	Outside Diameter	8.6 mm
Weight	0.12 kg/m	Inside Diameter	5 mm
Vacuum Pressure Rating	28 Inch-Hg	Application	Chemical Transfer
Product Type	PTFE Hose	Cover Material	n/a
Minimum Bend Radius	51 mm	Hose Reinforcement Material	Braid of 304 Stainless Steel
Specifications Met	SAE 100R1, Type 4A	Compatible Fitting	91N Series
Design Factor	4:1	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Minimum Operating Temperature	-100 °F	Hose Style	Natural PTFE
Hose I.D. (inch)	3/16
