Parker 928087Q - Replacement Elements - Medium Pressure Filter IL8 Series

The Parker IL8 Coreless Medium Pressure Filter Series are engineered with the latest in Microglass technology. IL8 Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 928087Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Filter Element	Product Style	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge with plated end cap
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Housing Series	IL83
Seal Material	Fluorocarbon	Length	triple
Filter Element	10Q Microglass	Efficiency βx(C) ≥ 1000	12 µ
Media	10 Micron Absolute	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Media Type	Microglass
Seals	FKM: Fluorocarbon	UOM	EA
Pkg Qty	1	Efficiency βx(C) ≥ 200	9 µ

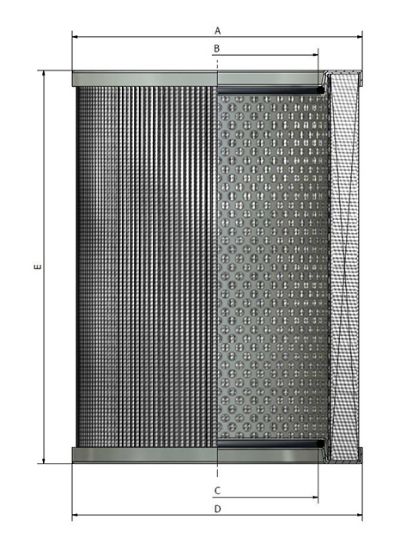

D Dimension	5.949 in (151.1 mm)	Inner Support Cylinder Material	Steel tin plated
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	B Dimension	0.606 in (15.4 mm)
E Dimension	38.65 in (981.7 mm)	Bottom Endcap Material	Steel
A Dimension	5.949 in (151.1 mm)	Media	10 Micron Absolute
Glue Endcaps Adhesive	Epoxy	Media Type	Microglass
Parker Division	Hydraulic Filter	Top Endcap Material	Steel
Series	ParFit	Efficiency βx(C) ≥ 200	9 µ
Efficiency βx(C) ≥ 1000	12 µ	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Parker Group	Filtration
Glue Side Seam Adhesive	Epoxy	Seals	FKM: Fluorocarbon
