Parker 927661Q - Replacement Elements - Medium Pressure Filter IL8 Series

The Parker IL8 Coreless Medium Pressure Filter Series are engineered with the latest in Microglass technology. IL8 Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 927661Q

$242.65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Type	Hydraulic Filter Element	Product Style	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	Coreless
Seal Material	Fluorocarbon	Filter Housing Series	IL81
Length	single	Filter Element	10Q Microglass
UOM	EA	Efficiency βx(C) ≥ 1000	12 µ
Seals	FKM: Fluorocarbon	Media Type	Microglass
Efficiency βx(C) ≥ 200	9 µ	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Media	10 Micron Absolute
Pkg Qty	1	Series	ParFit

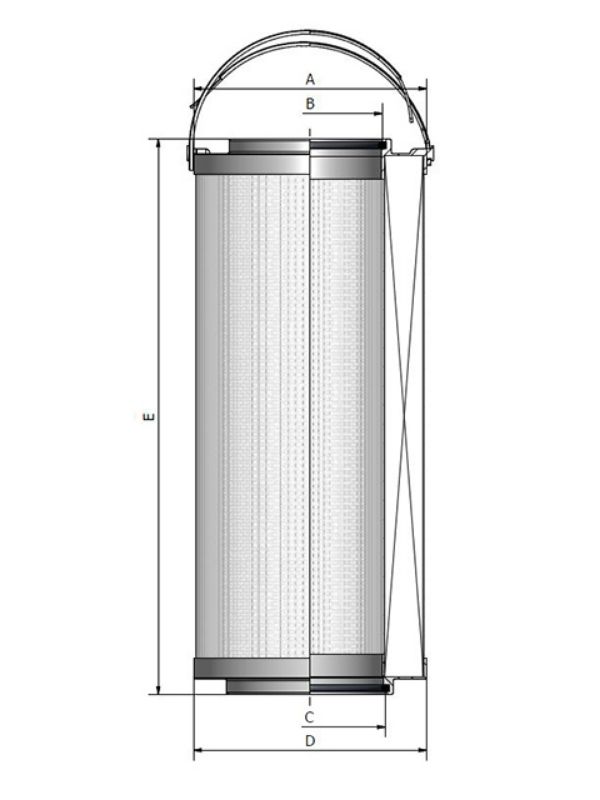

Efficiency βx(C) ≥ 200	9 µ	E Dimension	1.043 in (26.5 mm)
Top Endcap Material	Glass reinforced nylon	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
Media	10 Micron Absolute	Inner Support Cylinder Material	Steel tin plated
Bottom Endcap Material	Glass reinforced nylon	Parker Division	Hydraulic Filter
Media Type	Microglass	Glue Endcaps Adhesive	Epoxy
Glue Side Seam Adhesive	Epoxy	Seals	FKM: Fluorocarbon
Parker Group	Filtration	Efficiency βx(C) ≥ 1000	12 µ
D Dimension	6.098 in (154.9 mm)	Competitor	POROUS MEDIA
B Dimension	0.606 in (15.4 mm)	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi
