Parker 926856 - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 926856

$200.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seals	FKM: Fluorocarbon
UOM	EA	Collapse Pressure (bar)	7 bar
Media Type	Microglass	Efficiency βx(C) ≥ 200	9 µ
Collapse Pressure (psi)	100 psi	Efficiency βx(C) ≥ 1000	12 µ
Pkg Qty	1	Seals	FKM: Fluorocarbon

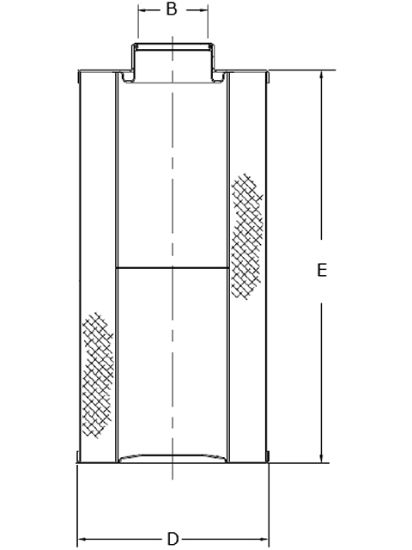

B Dimension	1.669 in (42.4 mm)	D Dimension	4.421 in (112.3 mm)
Efficiency βx(C) ≥ 1000	12 µ	E Dimension	9.732 in (247.2 mm)
Media Type	Microglass	Collapse Pressure (bar)	7 bar
Efficiency βx(C) ≥ 200	9 µ	Top Endcap Material	Steel
Parker Division	Hydraulic Filter	Glue Endcaps Adhesive	Epoxy
Series	ParFit	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
Media	10 Micron Absolute	Collapse Pressure (psi)	100 psi
Inner Support Cylinder Material	Steel tin plated	Bottom Endcap Material	Steel
Glue Side Seam Adhesive	Epoxy	Parker Group	Filtration
