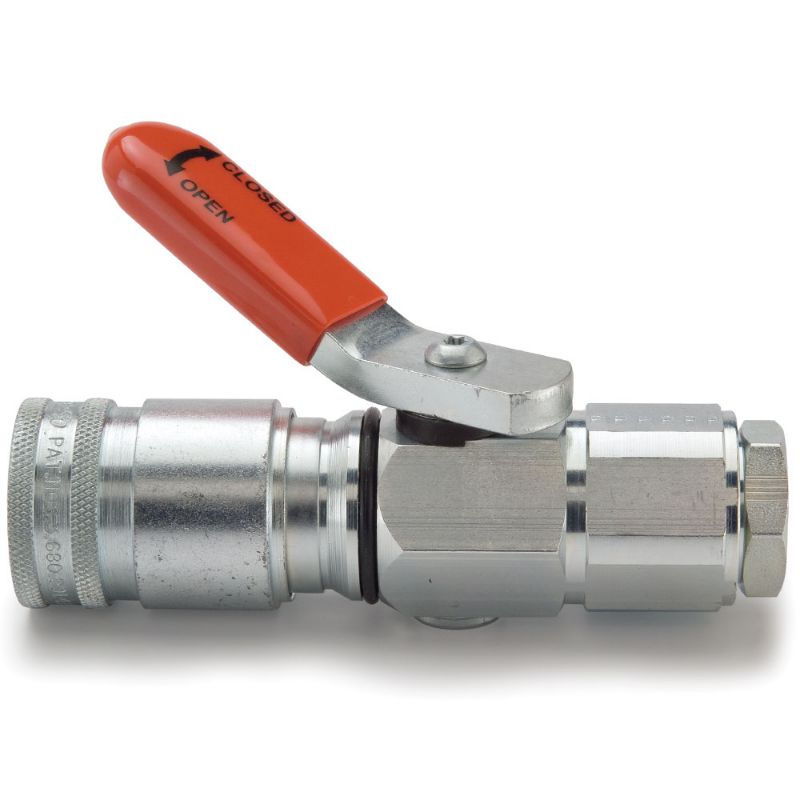

Parker 9250-4R - Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series

Name: Parker 9250-4R - Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series
SKU: 9250-4R
Price: 195.05 USD
Availability: InStock

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

AFP Availability:

1 Limited Stock

Richmond, VA

1 (Pickup only)

Partner Available:

2 Limited Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 9250-4R

$195.05/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Connection Type	NPTF
Division	Quick Coupling Division	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Body Size	1/2 inch
Brand	Pioneer	Coupling Half	Coupler
Thread Size	Female	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with Clear Trivalent Chromate	Application	Breakaway Sleeve
Specifications Met	ISO 5675	Flow Rate	12 Gal/min
Media	Hydraulic	Lock Type	Locking Balls
Body Material	Steel	Connection Thread Size (inch)	1/2 - 14
Sleeve Type	Manual push pull sleeve	Mounting Position	Right hand – red grip
