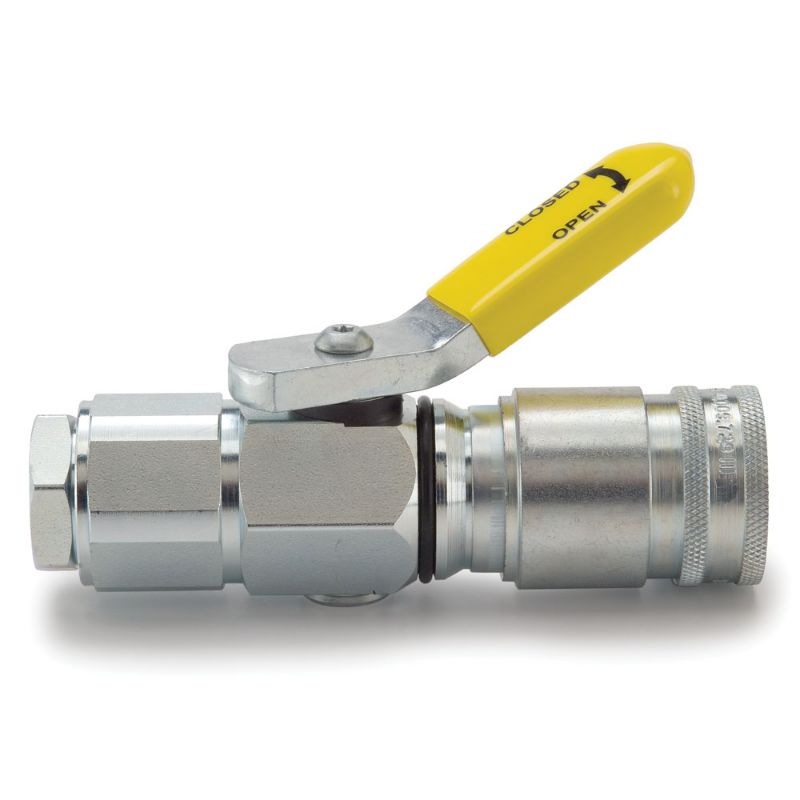

Parker 9250-4L - Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9250-4L

$203.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Zinc with Clear Trivalent Chromate
Application	Connect Under Pressure	Flow Rate	12 Gal/min
Specifications Met	ISO 5675	Seal Material	Nitrile
Body Size	1/2 inch	Lock Type	Locking Balls
Body Material	Steel	Thread Size	Female
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Connection Type	NPTF	Division	Quick Coupling Division
Media	Hydraulic	Brand	Pioneer
Coupling Half	Coupler	Maximum Operating Pressure	3000 psi
Valve Type	Poppet	Connection Thread Size (inch)	1/2 - 14
Mounting Position	Left hand – yellow grip	Sleeve Type	Manual push pull sleeve
