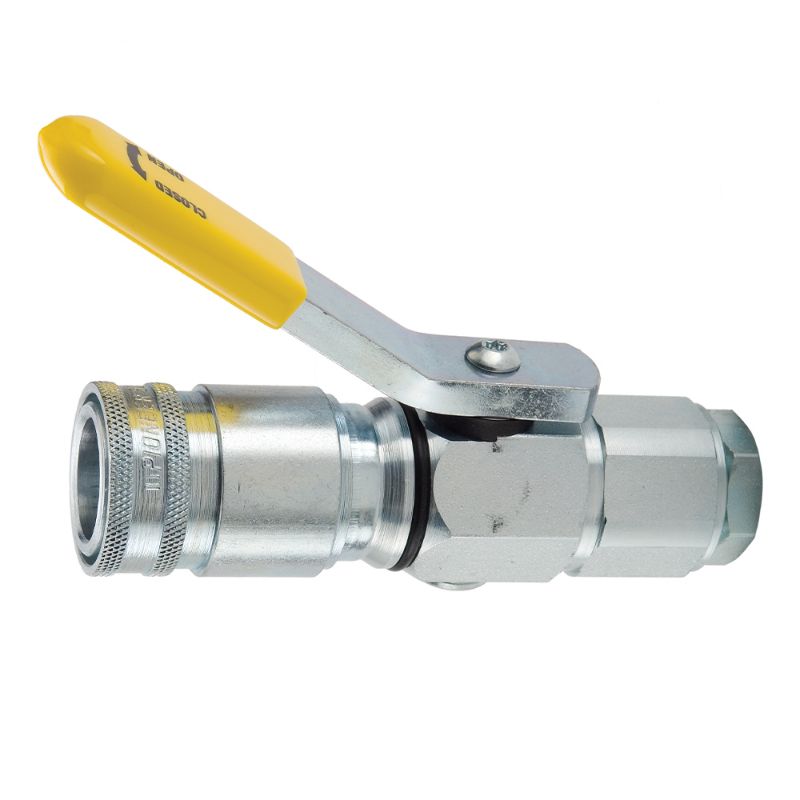

Parker 9250-15-320 - Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. 9250-15-320

$175.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Poppet
Dimensional Weight	0.32233588129496404 lb	Division	Quick Coupling Division
Connection Type	UNF	Seal Material	Nitrile
Body Size	1/2 inch	Brand	Pioneer
Coupling Half	Coupler	Maximum Operating Pressure	3000 psi
Thread Size	Female	Minimum Operating Temperature	-40 °F
Specifications Met	ISO 5675	Plating Type	Zinc with Clear Trivalent Chromate
Application	Breakaway Sleeve	Flow Rate	12 Gal/min
Media	Hydraulic	Maximum Operating Temperature	250 °F
Body Material	Steel	Lock Type	Locking Balls
Connection Thread Size (inch)	3/4 - 16	Sleeve Type	Manual push pull sleeve with lower sleeve spring force
Mounting Position	Left hand – yellow grip
