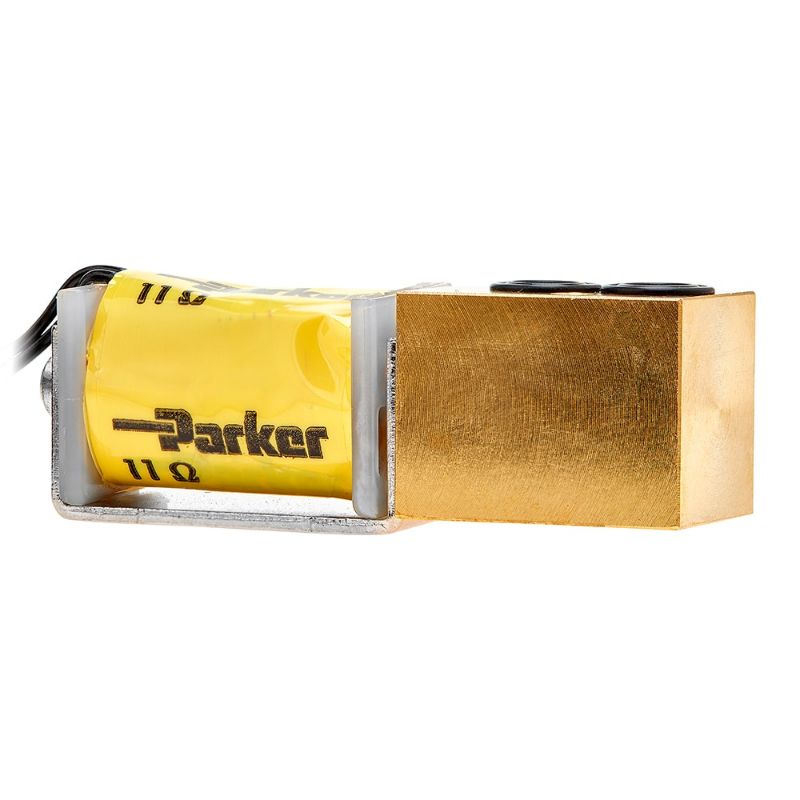

Parker 921-211051-000 - VSO® Max HP Miniature High Pressure High Flow Proportional Valve

The VSO® MAX HP Series is a 2-Way Normally Closed proportional valve providing high flow and high pressure configurations, at less than 2.2 watts of power. This family consists of two orifice sizes and three voltage options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 921-211051-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Normally Closed (NC)	Seal Material	FKM
For Fluid Type	Gases	Maximum Operating Pressure	120 psi
Configuration	n/a	Maximum Operating Temperature	55 °C
Power Consumption	2.0 W	Actuation Type	Solenoid
Division	Precision Fluidics Division	Mounting Type	Manifold
Operation Type	Electronic	Control Method	Current or Voltage
Standard Lead Time	20	Out of Stock Lead Time	40
Spring Material	Stainless Steel	Orifice Size	0.116 inch
Minimum Operating Temperature	5 °C	Width	0.63 inch
Cycles per Lifetime	100 Million	Industry Application	Anesthesia Delivery & Monitors
Electrical Connection	18" Wire Leads	Connection Type	Mounting Screw
Thermal Compensation	Non-Thermally Compensated	Input Voltage	5 VDC
Max Order Quantity	15	Height	0.69 inch
Length	51.4 mm	Weight	69.5 g
Flow Rate	up to 275 SLPM	Leak Rate	0.5 cm3/min of Air @ 150 Psi
Body Material	Brass C36000	Connection Size	Socket Head Cap screw
Shipping Weight	3.01	Maximum Flow Rate	275 SLPM
Response Time	10 ms Typical	Armature Material	Stainless Steel 430FR
Voltage (VDC)	5	Orifice Size (inch)	0.116
