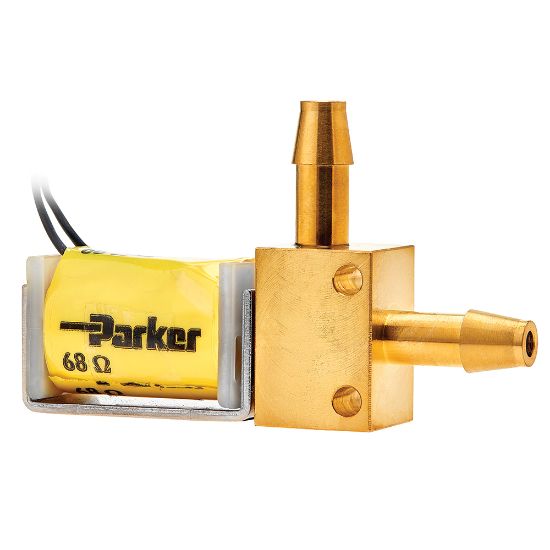

Parker 920-000027-010 - 55 Series 11155

Non-thermally compensated, 2-way normally closed (NC) miniature proportional valve capable of 60 slpm flow and pressures up 50 psig; Ideal performance when utilized with closed loop control.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 920-000027-010

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Normally Closed (NC)	Seal Material	FKM
For Fluid Type	Gases	Length	2.32 inch
Configuration	n/a	Maximum Operating Temperature	131 °F
Input Voltage	12 VDC	Actuation Type	Solenoid
Division	Precision Fluidics Division	Mounting Type	Manifold
Operation Type	Electronic	Minimum Operating Temperature	0 °C
Control Method	Current or Voltage	Connection Size	4-40 x 5/8" Pan Head Phillips Screw
Electrical Connection	18" Wire Leads	Height	17.0 mm
Maximum Operating Pressure	3.45 bar	Weight	62.9 g
Connection Type	Mounting Screw	Thermal Compensation	Non-Thermally Compensated
Port Connection	Barb	Width	15.88 mm
Flow Rate	up to 60 SLPM	Leak Rate	< 0.2 cm3/min of Helium
Orifice Size	0.070 inch	Body Material	Stainless Steel 430 FR
Maximum Flow Rate	60 SLPM	Power Consumption	3.0 W Maximum
Cycles per Lifetime	35 Million	Industry Application	Patient Monitors
Vacuum to Pressure Range	27 Inch-Hg	Wetted Material	Stainless Steel 300 Series
Pneumatic Connection	Manifold Mount	Maximum Operating Voltage	12 VDC
