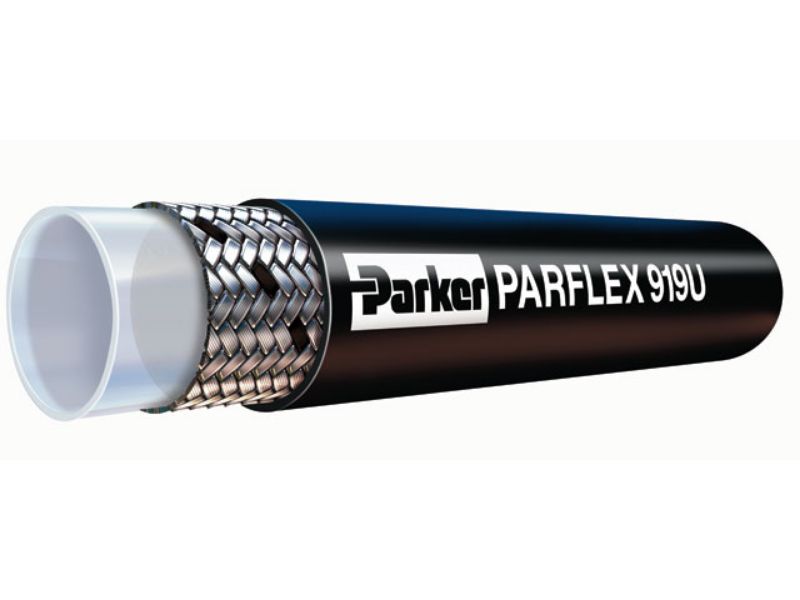

Parker 919U-6-500-RL - 919U Series

Medium Pressure Fluoropolymer (Teflon®) Abrasion Resistance Hose

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 919U-6-500-RL

$18.59/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.313 Inch
Material	Fluoropolymer (Teflon®)	UOM	FT
Mating Fitting Series	91N	Pkg Qty/UOM	500 FT
Working Pressure	2500 PSI (170 bar)	Pkg Qty	500
Parker Group	Fluid Connector	Inch/Metric	Inch
Inner Diameter	0.313 Inch	Inner Diameter Inch/mm	Inch
Parker Division	Parflex	Working Pressure Range	2000 to 2999 PSI ( 138 to 207 bar)
Hose Pressure Range	Medium	Series	919U
Material	Fluoropolymer (Teflon®)	Distinct Properties	Abrasion Resistance
Specification	SAE 100R14A	Mating Fitting Series	91N
