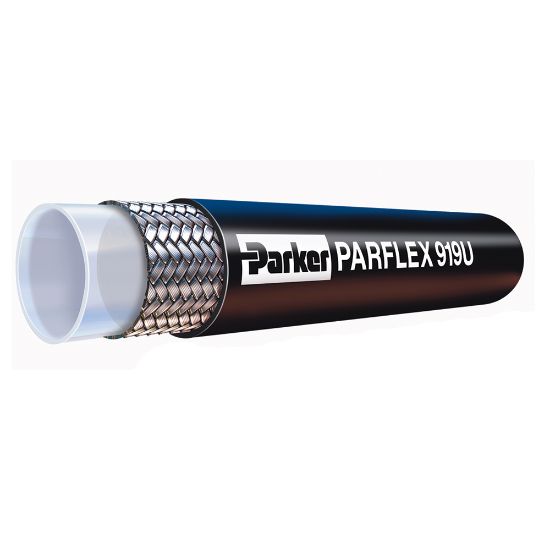

Parker 919U-4 - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:	Quote Required
Partner Available:	1482 In Stock

Brand Parker

Part No. 919U-4

$13.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °F
Division	Parflex Division	Maximum Operating Pressure	3000 psi
Product Type	PTFE Hose	Product Style	Smoothbore
Size	-4	Weight	0.08 lb/ft
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Hose Reinforcement Material	Braid of Stainless Steel
Design Factor	4:1	Vacuum Pressure Rating	711 mm-Hg
Specifications Met	FDA 21 CFR 177.1550	Cover Material	Polyurethane
Minimum Bend Radius	51 mm	Inside Diameter	5 mm
Media	Petroleum Hydraulic Fluids	Maximum Operating Temperature	275 °F
Application	Foam Mixers	Outside Diameter	9.4 mm
Compatible Fitting	91N Series	Size	-4
Length	Random	Hose Type	Polyurethane Jacket, Natural
